LF909-OSY LLC 3" RED PRES ZONE ASS

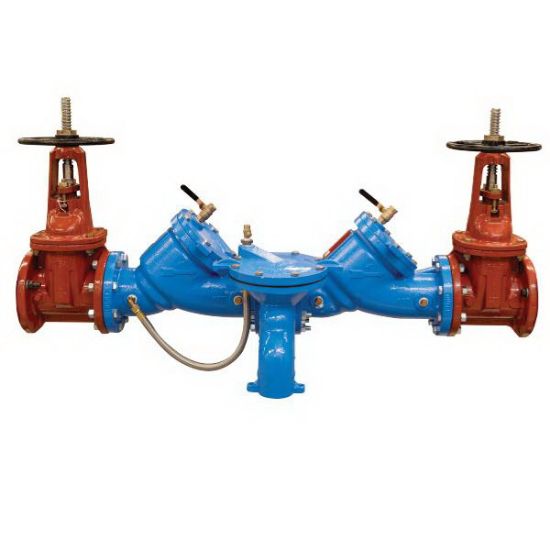

Watts LF909-OSY 3" Cast Iron Reduced Pressure Zone Assembly, Osy Shutoff

Manufacturer: Watts

$0.00

Qty:

Reduced Pressure Zone Assembly, LF909 Series, Model: LF909-OSY, 42-1/4 in. Length, 14-1/16 in. Width, 24-1/8 in. Height, Material: Epoxy Coated Cast Iron Check Valve, Cast Copper Silicon Alloy Relief Valve, End Connection 1: Flanged, End Connection 2: Flanged, Lead Law Compliant: Yes, Maximum Temperature: 140F, Pressure - Maximum: 175 psi, Recommended Valve Application: Water, Air, Specifications - ASSE Standards: ASSE 1013, Specifications - AWWA: AWWA C-511-92, Specifications - CSA Certified: CSA B64.4, Specifications - UL Listed: Yes, Stainless Steel Valve Seat, Valve Size: 3 in., Gate Valve, Specifications - FM Approved: Yes, 7.5 ft/sec Capacity

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	42-1/4 in.
Width	14-1/16 in.
Height	24-1/8 in.
Material	Epoxy Coated Cast Iron Check Valve, Cast Copper Silicon Alloy Relief Valve
Capacity	7.5 ft/sec
End Connection 1	Flanged
End Connection 2	Flanged
Lead Law Compliant	Yes
Maximum Temperature	140F
Pressure - Maximum	175 psi
Recommended Valve Application	Water, Air
Specifications - ASSE Standards	ASSE 1013
Specifications - AWWA	AWWA C-511-92
Specifications - CSA Certified	CSA B64.4
Specifications - FM Approved	Yes
Specifications - UL Listed	Yes
Valve Seat Material	Stainless Steel
Valve Size	3 in.
Valve Type	Gate
