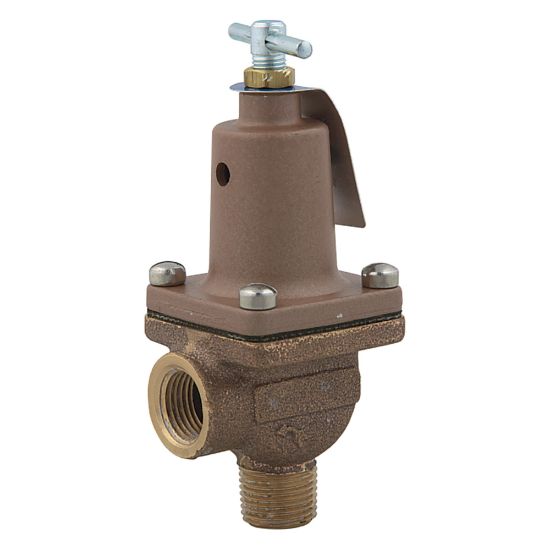

LFBP30 LLC 10-50 1/2" BYPSS CTRL RLF VLV

Watts 0121399 LFBP30 Series Lead Free 1/2 in. FNPT x MNPT Copper Silicon Alloy 50 psi Diaphragm Operated Bypass Control Relief Valve
Manufacturer: Watts
$0.00
This 1/2 in. bypass control relief valve is used in commercial, residential and industrial applications to regulate liquid pressure as supplied by a positive pressure pump. It is a diaphragm-operated type valve that protects equipment by opening at an adjustable range of 10 to 50 psi (0.1 to 3.4 bar) to allow excess volume to be by-passed back to the source. It consists of a lead free alloy body with NPT threaded male inlet and NPT threaded female outlet, sensitive rubber diaphragm, Buna-N disc, tee handle, a spring, and adjustment handle separated from liquid elements.
Products specifications
products.specs.attributename products.specs.attributevalue
Height 1/2 in.
Lead Law Compliant Yes
Length 2-1/4 in.
Material Cast Copper Silicon Alloy;Brass
Maximum Temperature 180
Pressure - Maximum 50 psi
Recommended Valve Application Water
Specifications - ANSI ANSI Z21.22
Valve Disc Material Buna-N
Valve Operator Tee Handle
Valve Size 1/2 in.
Valve Type Diaphragm
Product Type Relief Valves
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Style Name LFBP30 Series
Weight 1.18 lb
Width 2 in.
Origin USA
Valve Body Material Brass
End Connection FNPT x MNPT
End Connection 1 FNPT
End Connection 2 MNPT
Size 1/2 in.
