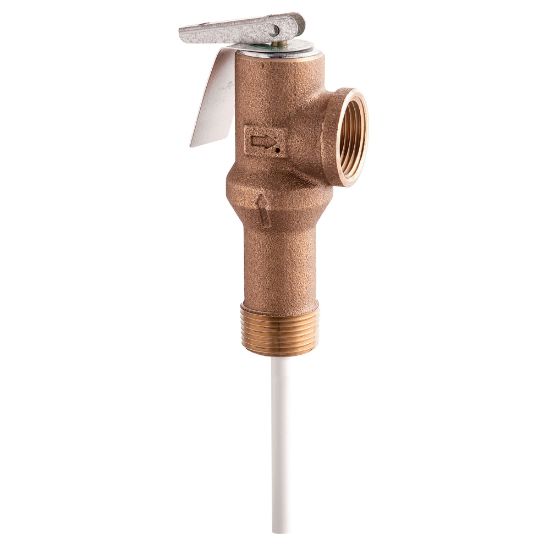

Picture of LFL100XL LLC 3/4" 150210 T&P XL RLF VLV

LFL100XL LLC 3/4" 150210 T&P XL RLF VLV

Watts 0556003 LF100XL Series Lead Free 3/4 in. Brass 150 psi 210 Degree F Self Closing Temperature and Pressure Relief Valve
Manufacturer: Watts
$0.00
This 3/4 in. lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with extended shank to accommodated up to 2 IN of insulation, NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
Lead Law Compliant Yes
Pressure - Maximum 150 psi
Size 3/4 in.
Valve Size 3/4 in.
Valve Type Self Closing
Product Type Relief Valves
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Height 7-3/4 in.
Length 2-1/2 in.
Specifications - ASME Yes
Specifications - CSA Certified Yes
Style Name LF100XL Series
Weight 0.67 lb
Width 1-3/7 in.
Origin USA
Valve Body Material Brass
End Connection FNPT x MNPT
End Connection 1 FNPT
End Connection 2 MNPT
Material Cast Copper Silicon Alloy;Brass
Maximum Temperature 210
