WATLFLL40XL150Q

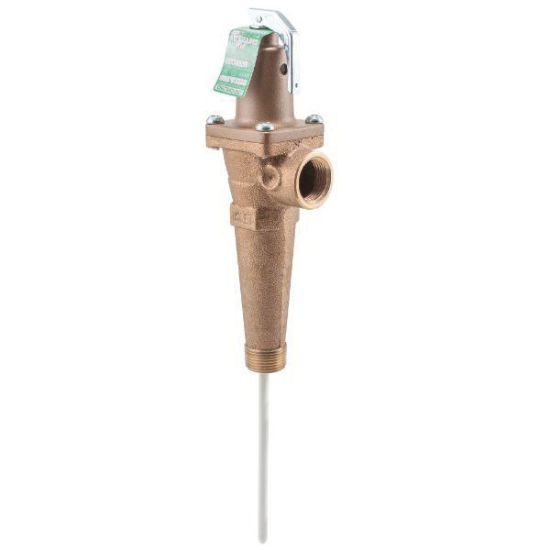

Watts 0121429 Lead Free Cast Copper Silicon Alloy LFLL40XL Automatic Reseating Extended Shank Temperature and Pressure Relief Valve, 3/4 in., MNPT x FNPT, 150 psi

Manufacturer: Watts

$0.00

Qty:

Automatic Reseating Extended Shank Temperature and Pressure Relief Valve, LFLL40XL Series, 2.64 in. Width, 6.66 in. Height, Material: Cast Copper Silicon Alloy, End Connection 1: MNPT, End Connection 2: FNPT, Fitting Size 2: 3/4 in., Lead Law Compliant: Yes, Maximum Temperature: 210F, Pressure - Maximum: 150 psi, Recommended Valve Application: Water, Steam, Specifications - ANSI: ANSI Z21.22, Valve Size: 3/4 in., 205000 btu/hr CSA Temperature Steam Rating, ASME Pressure Steam Rating: 1438000 btu/hr

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2.64 in.
Height	6.66 po
Material	Cast Copper Silicon Alloy
ASME Pressure Steam Rating	1438000 btu/hr
CSA Temperature Steam Rating	205000 btu/hr
End Connection 1	MNPT
End Connection 2	FNPT
Fitting Size 2	3/4 in.
Lead Law Compliant	Yes
Maximum Temperature	210F
Pressure - Maximum	150 psi
Recommended Valve Application	Water, Steam
Specifications - ANSI	ANSI Z21.22
Valve Size	3/4 in.
