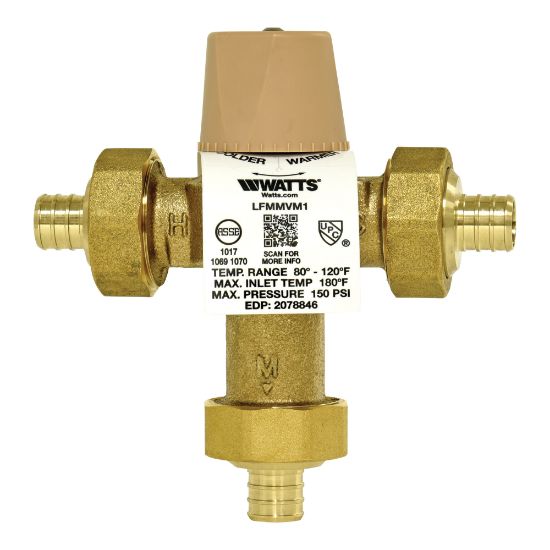

Watts LFMMVM1-PEX 1/2" Lead Free Thermostatic Mixing Valve, Crimp End Connections, Adjustable Out 80-120 F

Manufacturer: Watts

$0.00

Qty:

Thermostatic Mixing Valve, MMV Series, Model: MMV-M1-PEX, 5-1/4 in. Length, 5-9/16 in. Height, Bronze, End Connection 1: PEX Union, Pressure - Maximum: 30 psi Minimum Supply Static, 150 psi Maximum, Flow Rate: 0.5 - 20 gpm, Valve Size: 1/2 in., Maximum Temperature: 120 - 180F Hot Inlet, 39 - 85F Cold Inlet, 5F Hot Water Inlet to Outlet Differential, 80 - 120F Outlet, 200F Maximum, Lead Law Compliant: Yes, Specifications - ASSE Standards: ASSE 1017, ASSE 1069, ASSE 1070

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-1/4 in.
Height	5-9/16 po
Material	Bronze
End Connection 1	PEX Union
Flow Rate	0.5 - 20 gpm
Lead Law Compliant	Yes
Maximum Temperature	120 - 180F Hot Inlet, 39 - 85F Cold Inlet, 5F Hot Water Inlet to Outlet Differential, 80 - 120F Outlet, 200F Maximum
Pressure - Maximum	30 psi Minimum Supply Static, 150 psi Maximum
Specifications - ASSE Standards	ASSE 1017, ASSE 1069, ASSE 1070
Valve Size	1/2 in.
