Picture of LFMMV-M1-PEX LLC 3/4" PEX THERM MIXING V

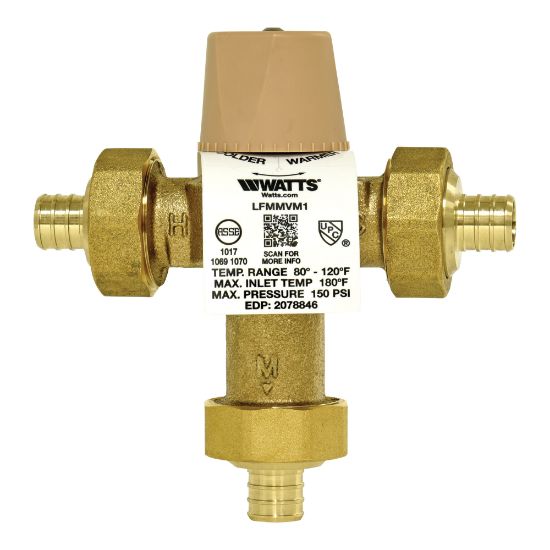

LFMMV-M1-PEX LLC 3/4" PEX THERM MIXING V

Watts 0559117 LFMMV Series Lead Free 3/4 in. Crimp Bronze Thermostatic Mixing Valve, Adjustable Out 80-120 F
Manufacturer: Watts
$0.00
This 3/4 in. lead free thermostatic mixing valve is designed for commercial, residential, or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body with crimp end connections for PEX tubing, integral filter washers, solid wax hydraulic principle thermostat, and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Crimped x Crimped
End Connection 1 Crimped
End Connection 2 Crimped
Lead Law Compliant Yes
Maximum Temperature 85
Pressure - Maximum 125 psi
Size 3/4 in.
Valve Size 3/4 in.
Product Type Thermostatic Valves
Valve Trim Type Thermostatic
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Height 2-5/8 in.
Length 6-1/3 in.
Material Brass
Specifications - ASSE Standards ASSE 1070;ASSE 1069;ASSE 1017
Style Name LFMMV Series
Valve Type Thermostatic
Weight 2.50 lb
Width 4-1/2 in.
cUPC Certified Yes
Origin USA
ADA Compliant No
Capacity 20 gpm
Colour/Finish Category Bronze Tones
Colour/Finish Name Rough Bronze
Lead Law Compliance Level Yes
Valve Body Material Lead Free Copper Silicon Alloy
