LFN240X LLC 1" 150210 T&P RELIEF VLV

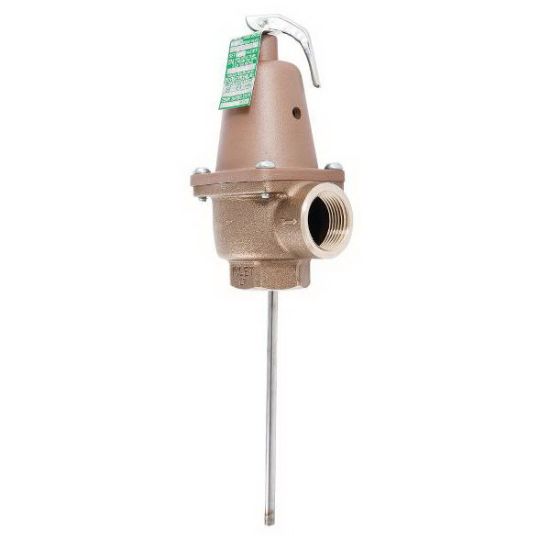

Watts 0556019 Lead Free Brass LFN240X Automatic Reseating Temperature and Pressure Relief Valve, 1 in., MNPT x FNPT, 150 psi

Manufacturer: Watts

$0.00

Qty:

Automatic Reseating Temperature and Pressure Relief Valve, LFN240X Series, Model: LFN240X-6, 3-1/4 in. Width, 6-1/4 in. Height, Material: Brass, End Connection 1: MNPT, End Connection 2: FNPT, Fitting Size 2: 1 in., Lead Law Compliant: Yes, Maximum Temperature: 210F, Pressure - Maximum: 150 psi, Recommended Valve Application: Water, Steam, Specifications - ANSI: ANSI Z21.22, Specifications - ASME: ASME Section IV, Valve Size: 1 in., 730000 btu/hr CSA Temperature Steam Rating, ASME Pressure Steam Rating: 4059000 btu/hr

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	3-1/4 in.
Height	6-1/4 po
Material	Brass
ASME Pressure Steam Rating	4059000 btu/hr
CSA Temperature Steam Rating	730000 btu/hr
End Connection 1	MNPT
End Connection 2	FNPT
Fitting Size 2	1 in.
Lead Law Compliant	Yes
Maximum Temperature	210F
Pressure - Maximum	150 psi
Recommended Valve Application	Water, Steam
Specifications - ANSI	ANSI Z21.22
Specifications - ASME	ASME Section IV
Valve Size	1 in.
