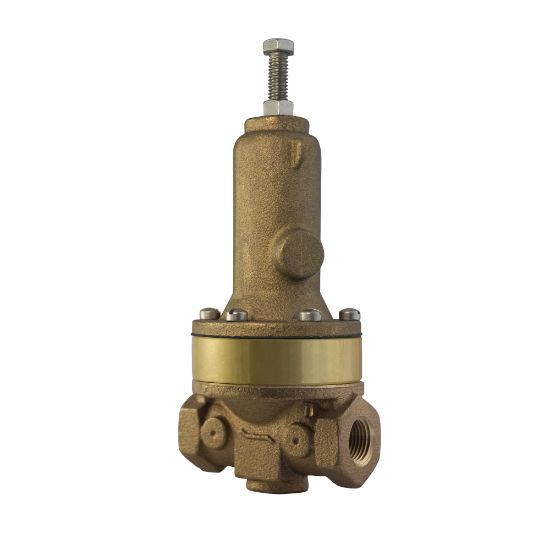

Picture of LFPV20C LLC 1/2" 20-200 RELIEF PILOT

LFPV20C LLC 1/2" 20-200 RELIEF PILOT

Watts 0121270 LFPV20C Series Lead Free 1/2 in. NPT x NPT Copper Silicon Alloy 200 psi Water Pressure Relief Control Valve
Manufacturer: Watts
$0.00
This 1/2 in. lead free pressure relief control valve is designed to open when diaphragm senses changes in upstream pressure. It is a direct acting, spring loaded, diaphragm type relief valve that is used as a control or self contained relief valve. The pressure set point is adjustable within the spring range, opening and closing within very close pressure limits. This valve features a lead free brass body, 1/2 NPT inlet and outlet connections, and a large diaphragm and seat area. The adjustable pressure range is 20 to 200 psi.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection NPT x NPT
End Connection 1 NPT
End Connection 2 NPT
Height 8-3/10 in.
Lead Law Compliant Yes
Length 3-1/2 in.
Material Cast Copper Silicon Alloy;Brass
Pressure - Maximum 200 psi
Valve Seat Material Stainless Steel
Valve Size 1/2 in.
Valve Type Pressure Reducing Valve
Product Type Pressure Reducing & ACV Valves
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Style Name LFPV20C Series
Weight 5.09 lb
Width 4 in.
Origin USA
Valve Body Material Brass
Recommended Valve Application Water
Size 1/2 in.
