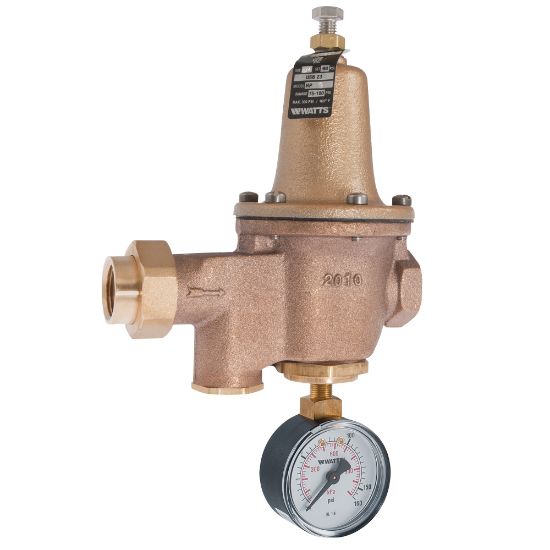

Picture of LFU5B-GG-Z3 LLC 1-1/4" WTR PRES RED VLV

LFU5B-GG-Z3 LLC 1-1/4" WTR PRES RED VLV

Watts 0009184 Lead Free 1-1/4 in. FNPT x NPT Brass Pressure Reducing Valve
Manufacturer: Watts
$0.00
This 1-1/4 in. lead free brass high performance water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, a bypass feature to control thermal expansion pressure, and a gauge. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
Lead Law Compliant Yes
Size 1-1/4 in.
Valve Size 1-1/4 in.
Valve Type Pressure Reducing Valve
Product Type Pressure Reducing & ACV Valves
End Connection FNPT x NPT
End Connection 1 FNPT
End Connection 2 NPT
Fitting Size 1 1-1/4 in.
Fitting Sizes 1-1/4 in.
Material Brass
Minimum Temperature 33
Pressure - Maximum 75 psi
Recommended Valve Application Water
Valve Disc Material Reinforced EPDM
Application Commercial
Valve Body Style Standard
Valve Body Material Brass
