Picture of LFU5B-GG-Z3 LLC 1-1/2" WTR PRES RED VLV

LFU5B-GG-Z3 LLC 1-1/2" WTR PRES RED VLV

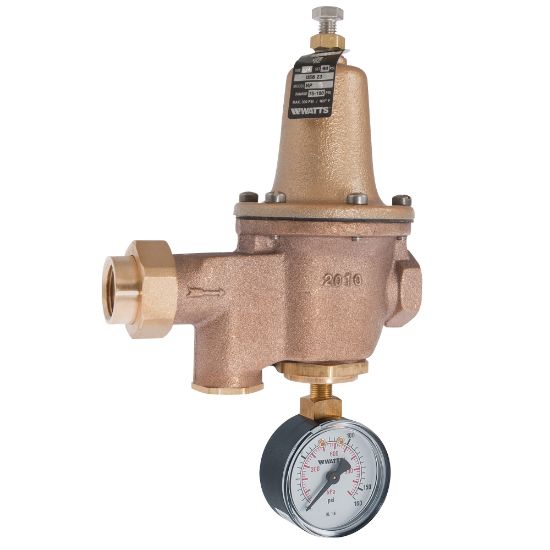

Watts 0009195 Lead Free 1-1/2 in. Brass 75 psi Water Pressure Reducing Valve, Gauge Tapping, Gauge
Manufacturer: Watts
$0.00
This 1-1/2 in. lead free brass high performance water pressure reducing valve is equipped with gauge tapping and a 160 psi (11.0 bar) gauge. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Pressure Reducing & ACV Valves
End Connection FNPT x NPT
End Connection 1 FNPT
End Connection 2 NPT
Fitting Size 1 1-1/2 in.
Fitting Sizes 1-1/2 in.
Lead Law Compliant Yes
Material Brass
Maximum Temperature 160
Minimum Temperature 33
Pressure - Maximum 75 psi
Recommended Valve Application Water
Size 1-1/2 in.
Valve Disc Material Reinforced EPDM
Valve Type Standard
Valve Body Style Standard
Valve Body Material Brass
