LFU5B-G-Z3 LLC 2" WTR PRES REDUC VLV

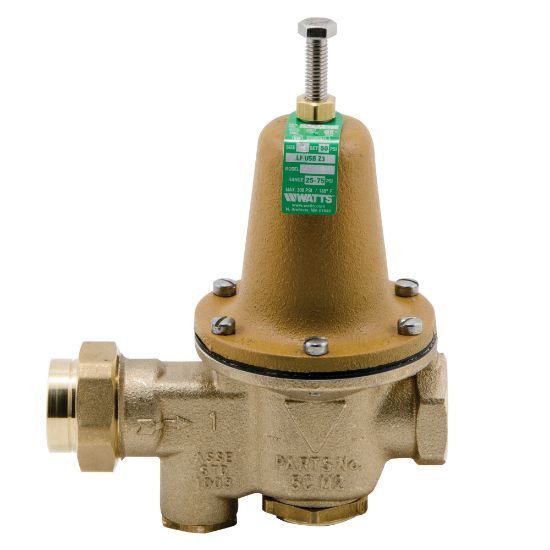

Watts LFU5B-G-Z3 2" Lead Free Water Pressure Reducing Valve, NPT Female Union x NPT Female, Adjust 25-75 psi, Gauge Tapping

Manufacturer: Watts

$0.00

Qty:

High Performance Water Pressure Reducing Valve, Model: LFU5B-G-Z3, 6 in. Length, 10-7/8 in. Width, 12-1/4 in. Height, Cast Copper Silicon Alloy, End Connection 1: FNPT Union, End Connection 2: FNPT, Lead Law Compliant: Yes, Maximum Temperature: 33 - 160F, Pressure - Maximum: 300 psi, Recommended Valve Application: Water, Specifications - ANSI: ANSI A112.26.2, Specifications - ASSE Standards: ASSE 1003, Specifications - CSA Certified: CSA B356, Specifications - IAPMO Listed: Yes, Specifications - NSF: NSF 61G, Specifications - NSF Certified: Yes, EPDM Valve Disc, Stainless Steel Valve Seat, Valve Size: 2 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6 in.
Width	10-7/8 in.
Height	12-1/4 in.
Material	Cast Copper Silicon Alloy
End Connection 1	FNPT Union
End Connection 2	FNPT
Lead Law Compliant	Yes
Maximum Temperature	33 - 160F
Pressure - Maximum	300 psi
Recommended Valve Application	Water
Specifications - ANSI	ANSI A112.26.2
Specifications - ASSE Standards	ASSE 1003
Specifications - CSA Certified	CSA B356
Specifications - IAPMO Listed	Yes
Specifications - NSF	NSF 61G
Specifications - NSF Certified	Yes
Valve Disc Material	EPDM
Valve Seat Material	Stainless Steel
Valve Size	2 in.
