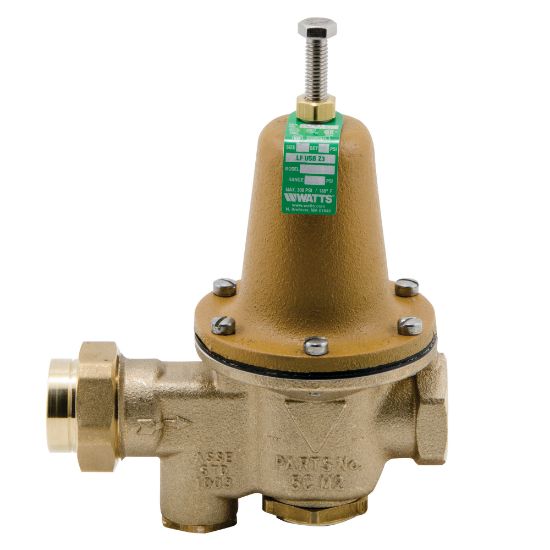

LFU5B-HP-Z3 LLC 1" WTR PRES REDUC VLV

Watts LFU5B-HP-Z3 1" Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female, High Range 75-100 psi

Manufacturer: Watts

$0.00

Qty:

High Performance Pressure Reducing Valve, Model: LFU5B-HP-Z3, 6-5/8 in. Length, 4 in. Width, 7-3/8 in. Height, Material: Cast Copper Silicon Alloy, End Connection 1: FNPT Union, End Connection 2: FNPT, Lead Law Compliant: Yes, Maximum Temperature: 33 - 160F, Pressure - Maximum: 75 - 100 psi, Recommended Valve Application: Water, Specifications - ANSI: ANSI A112.26.2, Specifications - ASSE Standards: ASSE 1003, Specifications - CSA Certified: CSA B356, Specifications - IAPMO Listed: Yes, Specifications - NSF: NSF 61G, Specifications - NSF Certified: Yes, EPDM Valve Disc, Replaceable Stainless Steel Valve Seat, Valve Size: 1 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6-5/8 in.
Width	4 in.
Height	7-3/8 po
Material	Cast Copper Silicon Alloy
End Connection 1	FNPT Union
End Connection 2	FNPT
Lead Law Compliant	Yes
Maximum Temperature	33 - 160F
Pressure - Maximum	75 - 100 psi
Recommended Valve Application	Water
Specifications - ANSI	ANSI A112.26.2
Specifications - ASSE Standards	ASSE 1003
Specifications - CSA Certified	CSA B356
Specifications - IAPMO Listed	Yes
Specifications - NSF	NSF 61G
Specifications - NSF Certified	Yes
Valve Disc Material	EPDM
Valve Seat Material	Replaceable Stainless Steel
Valve Size	1 in.
