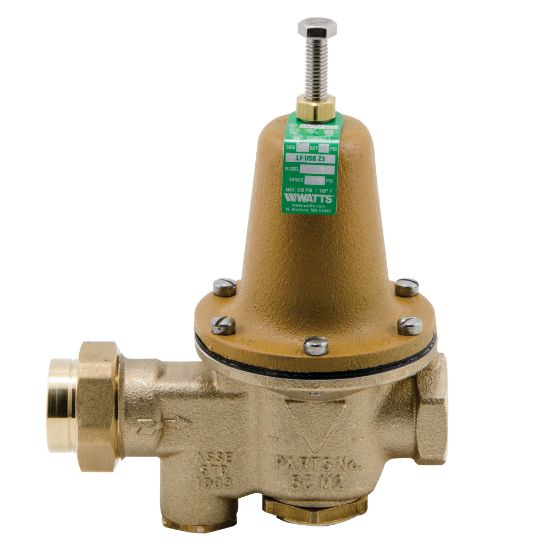

Picture of LFU5B-HP-Z3 LLC 1-1/4" WTR PRES RED VLV

LFU5B-HP-Z3 LLC 1-1/4" WTR PRES RED VLV

Watts 0009187 LFU5B-Z3 Series Lead Free 1-1/4 in. FNPT x NPT Cast Copper Silicon Alloy 100 psi Water Pressure Reducing Valve
Manufacturer: Watts
$0.00
This 1-1/4 in. lead free brass high performance water pressure reducing valve is equipped for high pressure ranges. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)). The high pressure range is 75-100 psi (518 to 690 kPa) with the standard setting at 90 psi (621 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection 1 FNPT
End Connection 2 NPT
Height 8-3/8 in.
Lead Law Compliant Yes
Length 7-15/16 in.
Material Cast Copper Silicon Alloy
Maximum Temperature 160
Pressure - Maximum 100 psi
Recommended Valve Application Water
Specifications - ANSI ANSI A112.26.2
Specifications - ASSE Standards ASSE 1003
Specifications - CSA Certified CSA B356
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 61G
Specifications - NSF Certified Yes
Valve Disc Material EPDM
Valve Seat Material Replaceable Stainless Steel
Valve Size 1-1/4 in.
Width 4-1/2 in.
Product Type Pressure Reducing & ACV Valves
End Connection FNPT x NPT
Fitting Size 1 1-1/4 in.
Fitting Sizes 1-1/4 in.
Style Name LFU5B-Z3 Series
Weight 9.20 lb
Origin USA
Minimum Temperature 33
Size 1-1/4 in.
Valve Type Standard
Lead Law Compliance Level Yes
Valve Body Style Standard
Valve Body Material Brass
