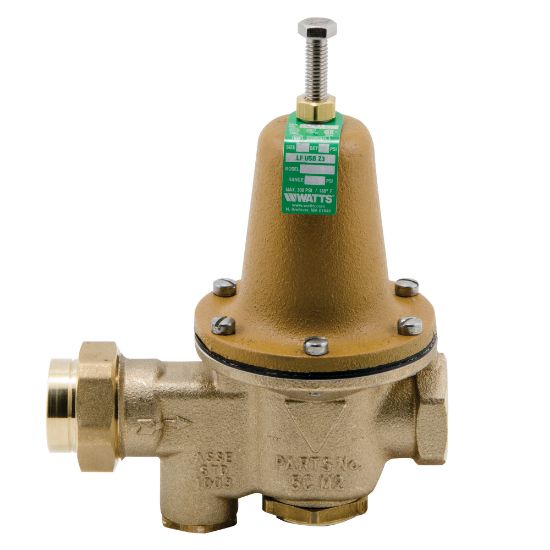

LFU5B-HP-Z3 LLC 1-1/2" WTR PRES RED VLV

Watts 0009199 LFU5B-Z3 Series Lead Free 1-1/2 in. FNPT x NPT Cast Copper Silicon Alloy Pressure Reducing Valve
Manufacturer: Watts
$0.00
This 1-1/2 in. lead free high performance water pressure reducing valve is equipped for high pressure ranges. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. It consists of a lead free brass body, replaceable stainless steel seat module, reinforced EPDM diaphragm and EPDM valve disc, NPT threaded female union inlet by NPT threaded female outlet with built in thermal expansion bypass to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C) and high pressure range is 75 to 100 psi (518 to 690 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x NPT
End Connection 1 FNPT
End Connection 2 NPT
Height 9-3/8 in.
Lead Law Compliant Yes
Length 9-4/9 in.
Material Brass
Maximum Temperature 160
Pressure - Maximum 100 psi
Recommended Valve Application Water
Size 1-1/2 in.
Specifications - ANSI ANSI A112.26.2
Specifications - ASSE Standards ASSE 1003
Specifications - CSA Certified CSA B356
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 61 Annex G
Specifications - NSF Certified Yes
Valve Disc Material EPDM
Valve Seat Material Stainless Steel
Valve Size 1-1/2 in.
Valve Type Pressure Reducing Valve
Width 4-3/4 in.
Product Type Pressure Reducing & ACV Valves
Style Name LFU5B-Z3 Series
Weight 13.88 lb
Origin USA
Fitting Size 1 1-1/2 in.
Fitting Sizes 1-1/2 in.
Minimum Temperature 33
Application Commercial
Valve Body Style Standard
Valve Body Material Brass
