Picture of LFU5B-HP-Z3 LLC 1/2" WTR PRES REDUC VLV

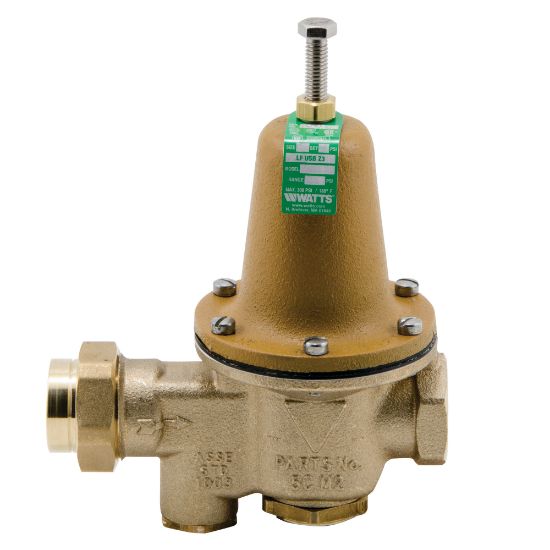

LFU5B-HP-Z3 LLC 1/2" WTR PRES REDUC VLV

Watts 0009107 LFU5B-Z3 Series Lead Free 1/2 in. FNPT x NPT Cast Copper Silicon Alloy 100 psi Standard Pressure Reducing & ACV Valve
Manufacturer: Watts
$0.00
This 1/2 in. lead free brass high performance water pressure reducing valve is equipped for high pressure ranges. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)). The high pressure range is 75-100 psi (518 to 690 kPa) with the standard setting at 90 psi (621 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
Size 1/2 in.
Product Type Pressure Reducing & ACV Valves
End Connection FNPT x NPT
End Connection 1 FNPT
End Connection 2 NPT
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Height 3 in.
Length 6-1/2 in.
Pressure - Maximum 100 psi
Weight 4.00 lb
Width 6-3/7 in.
Style Name LFU5B-Z3 Series
Origin USA
Lead Law Compliant Yes
Material Cast Copper Silicon Alloy
Minimum Temperature 33
Recommended Valve Application Water
Valve Disc Material Reinforced EPDM
Valve Type Standard
Application Commercial;Residential
Valve Body Style Standard
Valve Body Material Brass
