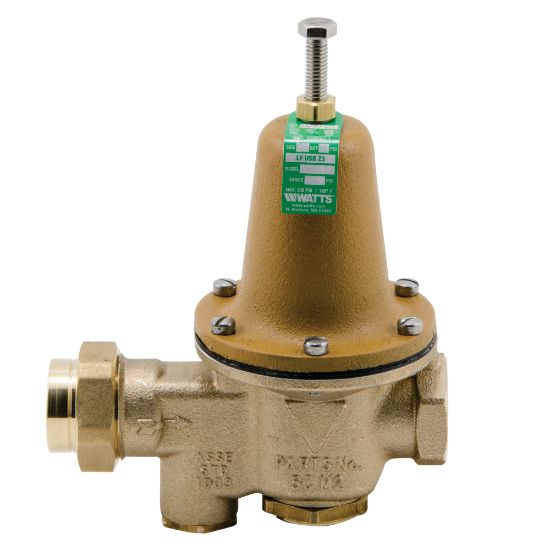

LFU5B-HP-Z3 LLC 3/4" WTR PRES REDUC VLV

Watts 0009126 LFU5B-Z3 Series Lead Free 3/4 in. FNPT x NPT Cast Copper Silicon Alloy Pressure Reducing Valve
Manufacturer: Watts
$0.00
This 3/4 in. lead free brass high performance water pressure reducing valve is equipped for high pressure ranges. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)). The high pressure range is 75-100 psi (518 to 690 kPa) with the standard setting at 90 psi (621 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x NPT
End Connection 1 FNPT
End Connection 2 NPT
Height 6-7/8 in.
Lead Law Compliant Yes
Length 6-1/5 in.
Material Cast Copper Silicon Alloy;Brass
Maximum Temperature 160
Pressure - Maximum 90 psi
Recommended Valve Application Water
Size 3/4 in.
Specifications - ANSI ANSI A112.26.2
Specifications - ASSE Standards ASSE 1003
Specifications - CSA Certified CSA B356
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 61 Annex G
Specifications - NSF Certified Yes
Valve Disc Material EPDM
Valve Seat Material Stainless Steel
Valve Size 3/4 in.
Valve Type Pressure Reducing Valve
Width 3-1/2 in.
Product Type Pressure Reducing & ACV Valves
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Style Name LFU5B-Z3 Series
Weight 4.52 lb
Origin USA
Minimum Temperature 33
Valve Body Style Standard
Valve Body Material Brass
