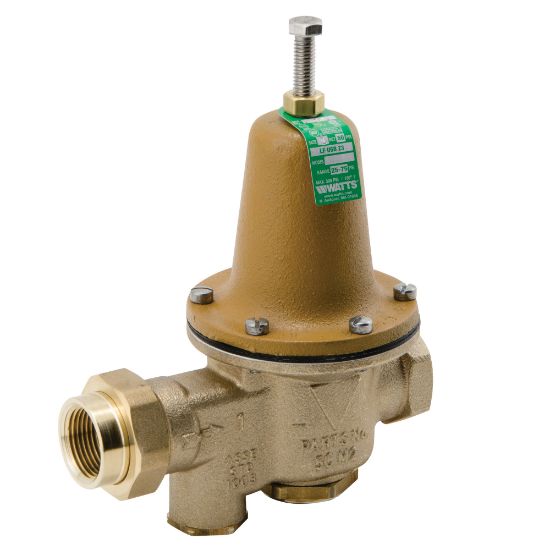

LFU5B-LP-Z3 LLC 1" WTR PRES REDUC VLV

Watts 0009162 LFU5B-Z3 Series Lead Free 1 in. FNPT x FNPT Cast Copper Silicon Alloy Water Pressure Reducing Valve
Manufacturer: Watts
$0.00
This 1 in. lead free high performance water pressure reducing valve with a lead free cast copper silicon alloy body is equipped for low pressure ranges. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The low pressure range is 10 to 35 psi (69 to 241 kPa) with the standard setting at 30 psi (207 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Height 7-3/8 in.
Lead Law Compliant Yes
Length 6-5/8 in.
Maximum Temperature 160
Pressure - Maximum 35 psi
Recommended Valve Application Water
Specifications - ANSI ANSI A112.26.2
Specifications - ASSE Standards ASSE 1003
Specifications - CSA Certified CSA B356
Specifications - NSF NSF 61 Annex G
Specifications - NSF Certified Yes
Valve Disc Material EPDM
Valve Seat Material Stainless Steel
Valve Size 1 in.
Valve Type Pressure Reducing Valve
Width 4 in.
Product Type Pressure Reducing & ACV Valves
Valve Body Material Cast Copper Silicon Alloy
Fitting Size 1 1 in.
Fitting Sizes 1 in.
Style Name LFU5B-Z3 Series
Weight 6.34 lb
Origin USA
Material Bronze
Minimum Temperature 33
Size 1 in.
Valve Body Style Standard
