LFU5B-LP-Z3 LLC 3/4" WTR PRES REDUC VLV

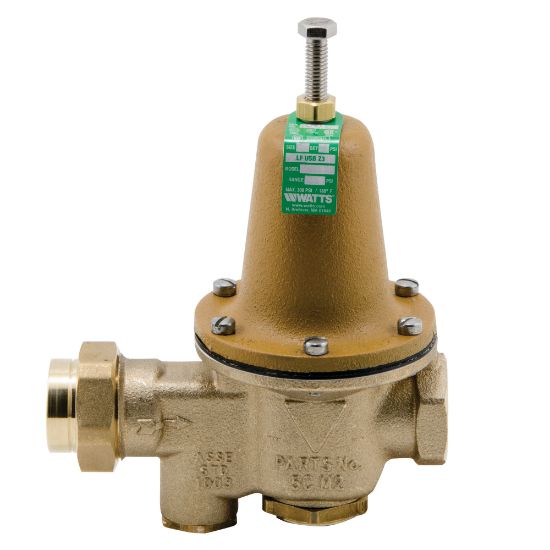

Watts LFU5B-LP-Z3 3/4" Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female, Low Range 10-35 psi

Manufacturer: Watts

$0.00

Qty:

High Performance Pressure Reducing Valve, Model: LFU5B-LP-Z3, 6-3/16 in. Length, 3-1/2 in. Width, 6-7/8 in. Height, Cast Copper Silicon Alloy, End Connection 1: FNPT Union, Pressure - Maximum: 10 - 35 psi, End Connection 2: FNPT, Stainless Steel Valve Seat, Valve Size: 3/4 in., EPDM Valve Disc, Maximum Temperature: 33 - 160F, Specifications - CSA Certified: CSA B356, Recommended Valve Application: Water, Specifications - ANSI: ANSI A112.26.2, Lead Law Compliant: Yes, Specifications - NSF: NSF 61G, Specifications - NSF Certified: Yes, Specifications - ASSE Standards: ASSE 1003, Specifications - IAPMO Listed: Yes

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6-3/16 in.
Width	3-1/2 in.
Height	6-7/8 po
Material	Cast Copper Silicon Alloy
End Connection 1	FNPT Union
End Connection 2	FNPT
Lead Law Compliant	Yes
Maximum Temperature	33 - 160F
Pressure - Maximum	10 - 35 psi
Recommended Valve Application	Water
Specifications - ANSI	ANSI A112.26.2
Specifications - ASSE Standards	ASSE 1003
Specifications - CSA Certified	CSA B356
Specifications - IAPMO Listed	Yes
Specifications - NSF	NSF 61G
Specifications - NSF Certified	Yes
Valve Disc Material	EPDM
Valve Seat Material	Stainless Steel
Valve Size	3/4 in.
