LFU5B-Z3 LLC 1-1/2" WTR PRES REDUC VLV

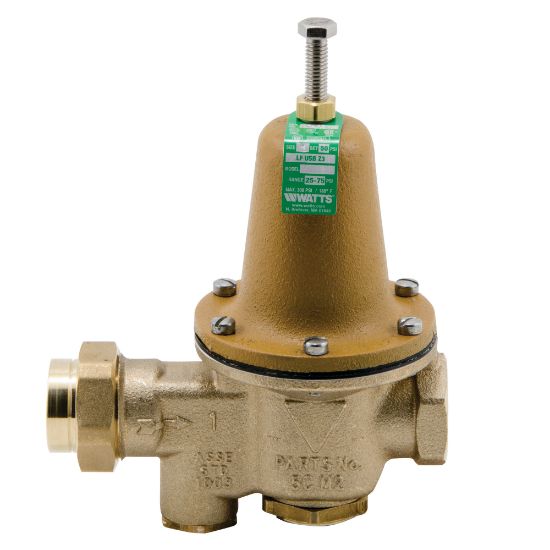

Watts LFU5B-Z3 1 1/2" Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female, Adjust 25-75 psi

Manufacturer: Watts

$0.00

Qty:

High Performance Pressure Reducing Valve, Model: LFU5B-Z3, 9-7/16 in. Length, 4-3/4 in. Width, 9-3/8 in. Height, Cast Copper Silicon Alloy, End Connection 1: FNPT Union, Pressure - Maximum: 25 - 75 psi, End Connection 2: FNPT, Stainless Steel Valve Seat, Valve Size: 1-1/2 in., EPDM Valve Disc, Maximum Temperature: 33 - 160F, Specifications - CSA Certified: CSA B356, Recommended Valve Application: Water, Specifications - ANSI: ANSI A112.26.2, Lead Law Compliant: Yes, Specifications - NSF: NSF 61G, Specifications - NSF Certified: Yes, Specifications - ASSE Standards: ASSE 1003, Specifications - IAPMO Listed: Yes

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9-7/16 in.
Width	4-3/4 in.
Height	9-3/8 po
Material	Cast Copper Silicon Alloy
End Connection 1	FNPT Union
End Connection 2	FNPT
Lead Law Compliant	Yes
Maximum Temperature	33 - 160F
Pressure - Maximum	25 - 75 psi
Recommended Valve Application	Water
Specifications - ANSI	ANSI A112.26.2
Specifications - ASSE Standards	ASSE 1003
Specifications - CSA Certified	CSA B356
Specifications - IAPMO Listed	Yes
Specifications - NSF	NSF 61G
Specifications - NSF Certified	Yes
Valve Disc Material	EPDM
Valve Seat Material	Stainless Steel
Valve Size	1-1/2 in.
