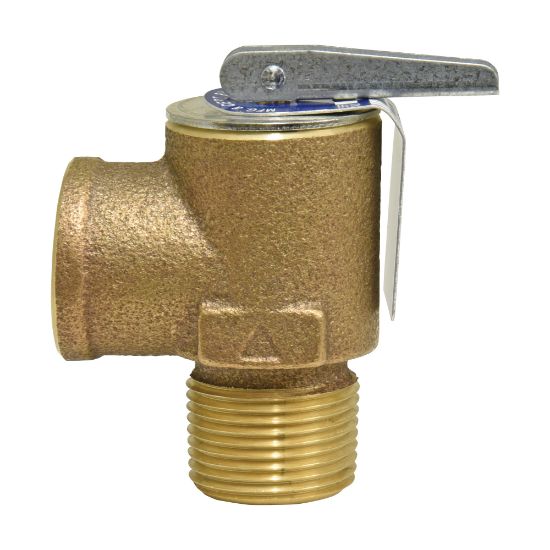

M335-M2-030-CAN 3/4" 30 BOIL PRES RELF V

Watts 0342694 335 Series 3/4 in. FNPT Bronze 30 psi Boiler Pressure Relief Valve
Manufacturer: Watts
$0.00
This 3/4 in. pressure safety relief valve is used in commercial and industrial applications for low pressure, steam heating boilers and process equipment. It consists of a bronze body construction with NPT threaded male inlet and threaded female outlet (drain) connection, a top-guided stem, stainless steel spring, and a non-stick Teflon disc-to-metal seating. The pressure relief is set at 30 psi (2.1 bar).
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FPT x MNPT
End Connection 1 FPT
End Connection 2 MNPT
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Height 2-3/4 in.
Material Bronze
Pressure - Maximum 30 psi
Recommended Valve Application Water
Valve Disc Material Silicone
Valve Operator Lever Handle
Valve Seat Material Bronze
Valve Size 3/4 in.
Product Type Relief Valves
Length 2-1/5 in.
Specifications - ASME ASME Section IV
Style Name 335 Series
Valve Type Pressure Relief Valve
Weight 0.49 lb
Width 1-7/8 in.
Origin USA
Maximum Temperature 250
Valve Body Material Bronze
