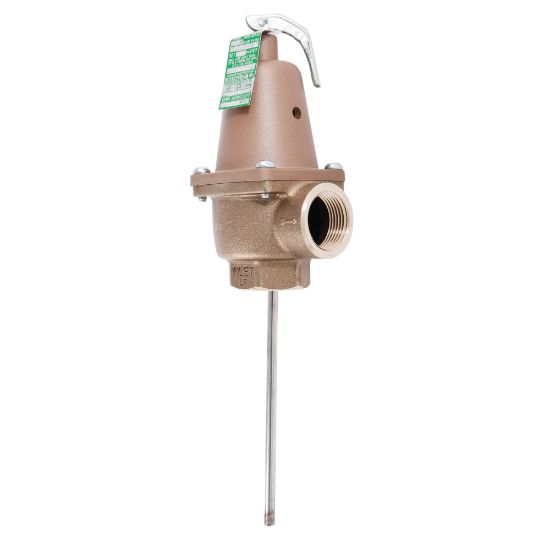

Picture of C++ N240X-6 1" 125210 T&P RELIEF

C++ N240X-6 1" 125210 T&P RELIEF

Watts 0315120 N240 Series 1 in. FNPT x FNPT Bronze 125 psi 210 Degree F Automatic Reseating Temperature and Pressure Relief Valve with 6 in. Stainless Steel Thermostat
Manufacturer: Watts
$0.00
This 1 in. bronze automatic reseating temperature and pressure relief valve, series N240X, with a 6 in. thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 125 psi.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Fitting Size 1 1 in.
Fitting Sizes 1 in.
Height 6-1/4 in.
Material Bronze
Maximum Temperature 210
Pressure - Maximum 125 psi
Recommended Valve Application Water;Steam
Size 1 in.
Specifications - ANSI ANSI Z21.22
Specifications - ASME ASME Section IV
Valve Size 1 in.
Valve Type Automatic Reseating
Width 3-3/8 in.
Product Type Relief Valves
Style Name N240 Series
Valve Operator Lever
Valve Body Material Bronze
