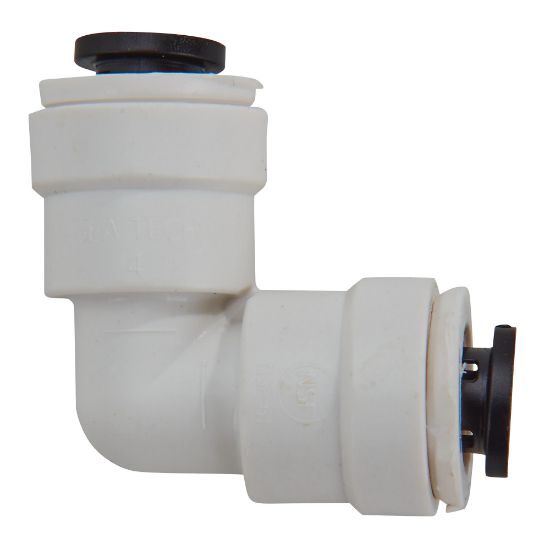

Picture of PL-3002 1/4"OD ELBOW (1/8ID)

PL-3002 1/4"OD ELBOW (1/8ID)

Watts 17103002 Lead Free 1/4 in. Push to Connect x OD x 90 Degree Plastic Mini Elbow
Manufacturer: Watts
$0.00
This 1/4 in. OD AquaLock mini elbow works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
Products specifications
products.specs.attributename products.specs.attributevalue
Diameter - Inside 1 1/8 in.
End Connection Push to Connect x OD x OD
End Connection 1 Push to Connect
End Connection 2 OD
End Connection 3 OD
Fitting Size 1 1/4 in.
Fitting Size 2 1/4 in.
Fitting Sizes 1/4 in. x 1/4 in.
Height 1-1/4 in.
Lead Law Compliant Yes
Length 1-1/4 in.
Material Plastic
Pressure - Maximum 150 psi
Specifications - NSF NSF 61
Specifications - NSF Certified Yes
Weight 0.20 oz
Product Type Plastic Elbows
Colour/Finish Category Whites
Colour/Finish Name White
Size 1/4 in. x 1/4 in.
Style Name 1017 Series
Width 2-8/9 in.
Origin MX
Material Type Polypropylene
Maximum Temperature 70
Minimum Temperature 33
Outlet Size 1/4 in.
Specifications - UL Listed No
Application Hot and Cold Water
Outlet Type Push to connect
Valve Body Material Polypropylene
Bend Radius 90 Degree
