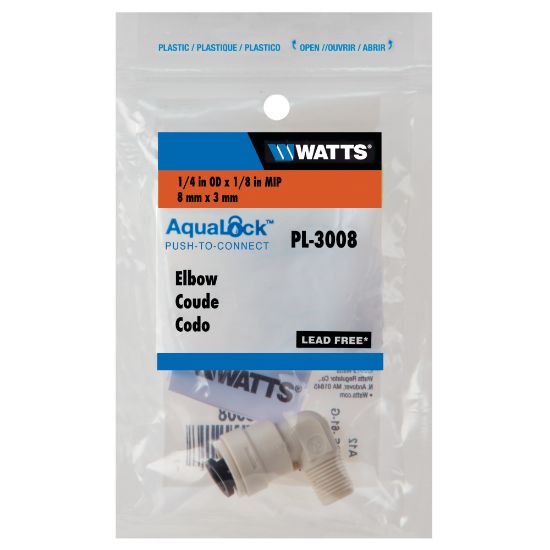

PL-3008 1/4X1/8ODX90 QCXMIP ELBOW

Watts 17103008 1001 Series Lead Free 1/4 in. x 1/8 in. NPT x Push to Connect 90 Degree Plastic Mini Elbow, White
Manufacturer: Watts
$0.00
This 1/4 in. OD x 1/8 in. MNPT AquaLock mini male elbow works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
Products specifications
products.specs.attributename products.specs.attributevalue
Angle 90 Degree
End Connection NPT x Push to Connect
End Connection 1 NPT
End Connection 2 Push to Connect
Fitting Size 1 1/4 in.
Fitting Size 2 1/8 in.
Fitting Sizes 1/4 in. x 1/8 in.
Lead Law Compliant Yes
Material Plastic
Pressure - Maximum 150 psi
Size 1/4 in. x 1/8 in.
Specifications - NSF NSF 61
Specifications - NSF Certified Yes
Product Type Plastic Elbows
Colour/Finish Category Whites
Colour/Finish Name White
Height 5-1/4 in.
Length 1 in.
Style Name 1001 Series
Weight 0.03 lb
Width 3 in.
Origin MX
Maximum Temperature 70
Minimum Temperature 33
Outlet Size 1/4 in. x 1/8 in.
Specifications - UL Listed No
Outlet Type Male Threaded
Valve Body Material Polypropylene
Bend Radius 90 Degree
