WATSS009QT1

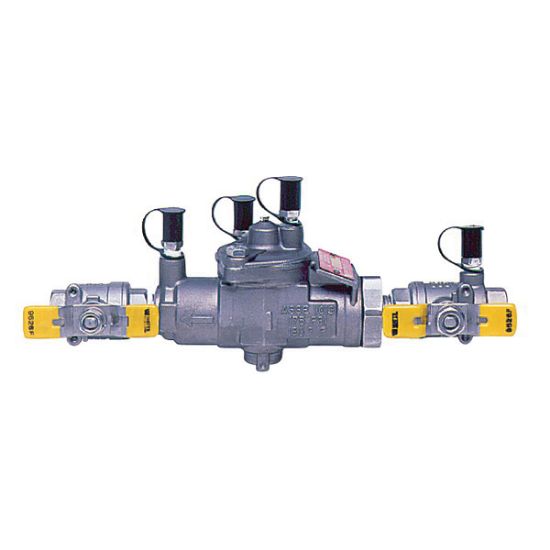

Watts SS009-QT 1" Stainless Steel Reduced Pressure Zone Assembly, Quarter Turn Shutoff Valves

Manufacturer: Watts

$0.00

Qty:

Reduced Pressure Zone Assembly, SS009 Series, Model: SS009-QT, 16-3/4 in. Length, 8-1/4 in. Width, 5-1/2 in. Height, Material: Stainless Steel, End Connection 1: FNPT, End Connection 2: FNPT, Lead Law Compliant: Yes, Maximum Temperature: 180F, Pressure - Maximum: 175 psi, Recommended Valve Application: Water, Specifications - ASSE Standards: ASSE 1013, Specifications - AWWA: AWWA C-511-92, Specifications - CSA Certified: CSA B64.4, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Valve Operator: Tee Handle, Replaceable Polymer Check Valve, Stainless Steel Relief Valve Valve Seat, Valve Size: 1 in., Ball Valve, Silicone Valve Disc, Material Type: 316 SS, 7.5 ft/sec Capacity

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	16-3/4 in.
Width	8-1/4 in.
Height	5-1/2 po
Material	Stainless Steel
Capacity	7.5 ft/sec
End Connection 1	FNPT
End Connection 2	FNPT
Lead Law Compliant	Yes
Material Type	316 SS
Maximum Temperature	180F
Pressure - Maximum	175 psi
Recommended Valve Application	Water
Specifications - ASSE Standards	ASSE 1013
Specifications - AWWA	AWWA C-511-92
Specifications - CSA Certified	CSA B64.4
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Valve Disc Material	Silicone
Valve Operator	Tee Handle
Valve Seat Material	Replaceable Polymer Check Valve, Stainless Steel Relief Valve
Valve Size	1 in.
Valve Type	Ball
