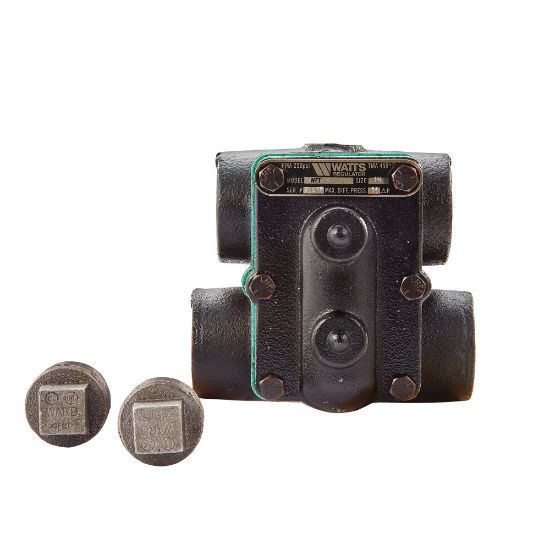

WFT-15 3/4" FLOAT & THERM STEAM TRAP

Watts 0037100 WFT Series 3/4 in. Float and Thermostatic Steam Trap, 0.218 Orifice, 15 psi
Manufacturer: Watts
$0.00
This 3/4 in. float and thermostatic steam trap is used in steam main drips and process applications to provide continuous air venting and condensate removal. It features an iron body H-pattern design, stainless steel valve head, seat, float and thermostatic air vent. It is water hammer resistant and can be serviced without disturbing system piping and it is ideal for use in unit heaters, heat exchangers/reboilers, air heating coils, steam main drips, and process equipment.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Material Stainless Steel
Maximum Temperature 353
Pressure - Maximum 15 psi
Size 3/4 in.
Valve Seat Material Stainless Steel
Valve Size 3/4 in.
Product Type Steam Traps, Parts & Accessories
Height 8-5/8 in.
Length 6-1/5 in.
Style Name WFT Series
Weight 12.86 lb
Width 5-2/3 in.
Origin USA
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Valve Type Pressure Balanced;Thermostatic
Valve Body Material Cast Iron
