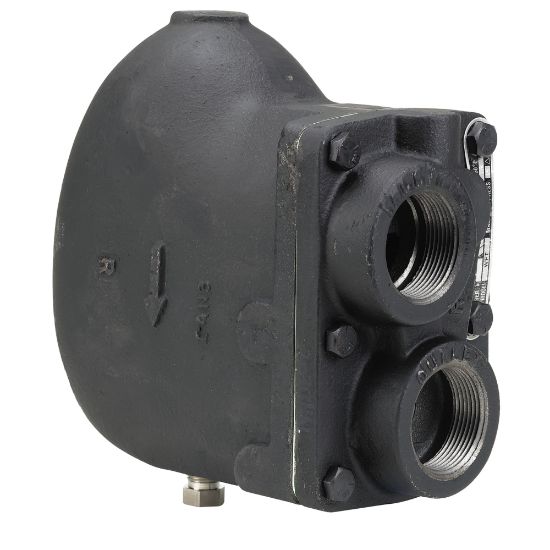

Picture of WFT-75 2" FLOAT & THERM STEAM TRAP

WFT-75 2" FLOAT & THERM STEAM TRAP

Watts 0037118 WFT Series 2 in. Float and Thermostatic Steam Trap, 0.421 Orifice, 75 psi
Manufacturer: Watts
$0.00
This 2 in. float and thermostatic steam trap with 0.421 orifice, is used in steam main drips and process applications to provide continuous air venting and condensate removal. It is ideal for use in unit heaters, heat exchangers/reboilers, air heating coils, steam main drips, and process equipment. It features an iron body H-pattern design, stainless steel valve head, seat, float and thermostatic air vent. It is water hammer resistant and can be serviced without disturbing system piping. Operating pressure is 75 psi.
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Steam Traps, Parts & Accessories
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Fitting Size 1 2 in.
Fitting Sizes 2 in.
Maximum Temperature 250
Pressure - Maximum 75 psi
Size 2 in.
Valve Size 2 in.
Valve Body Material Cast Iron
