WHR16E09101Q

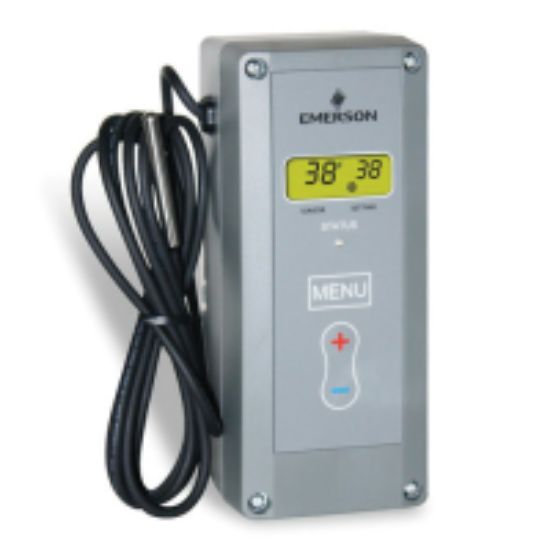

White Rodgers 16E09-101 Grey Plastic Universal Electronic Temperature Control, -40 to 220F, 24/120/208/240 VAC
Universal Electronic Temperature Control, 6-3/4 in. Length, 3 in. Width, High Impact Plastic Cover and Case, Colour/Finish Name: Grey, SPDT Switch Configuration, Depth: 2-9/16 in., 24/120/208/240 VAC Volts, -40 to 220F Control Range, FLA: 16A at 120 VAC, 9.2A at 208 VAC, 8A at 240 VAC, Locked Rotor: 96A at 120 VAC, 55.2A at 208 VAC, 48A at 240 VAC, Non-Inductive: 16A at 120/208/240 VAC, Minimum Load: 1A at 24 VAC, 125 VA at 24 - 240 VAC Pilot Duty Contact Rating, NEMA 1 Enclosure, Temperature Range: -29 to 140F Operating, -40 to 185F Storage, 0 - 95% RH Non-Condensing Operating Humidity, 60Hz Frequency Rating, Differential Temperature: 1 - 30F, Negative Temperature Co-efficient Sensor with 7.5 ft. Leads (Maximum Length for Remote Temperature Sensing - 400 ft.) Includes, Horsepower: 1 hp
