WHR1E30N311

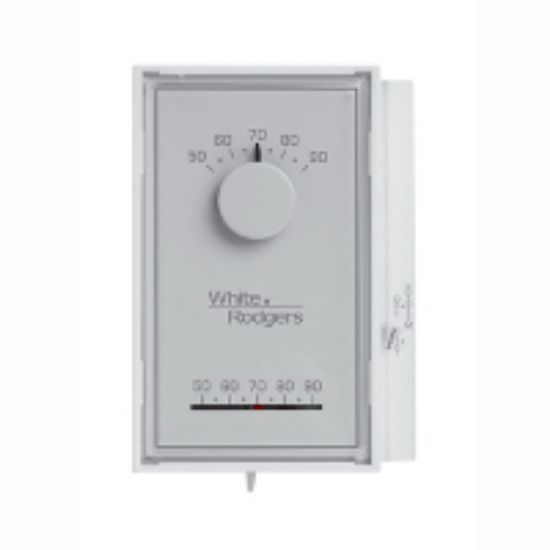

White Rodgers 1E30N-311 Classic WhMercury Free Non-Programmable Thermostat, 1H, 20 - 30 VAC

Manufacturer: Emerson

$0.00

Qty:

Mercury Free Non-Programmable Thermostat, 2-3/4 in. Width, 4-1/2 in. Height, Colour/Finish Name: Classic White, Depth: 1-1/2 in., Non-Programmable Programmability, Stages: 1H, 20 - 30 VAC Volts, 0 - 90% Non-Condensing Humidity Range, 50 - 90F Setting Temperature Range, Snap Action Contacts Switch Type, Mounting Type: Vertical, R, W Terminal Designations, 50/60Hz Frequency Rating, Differential Temperature: 1F Heat, 1.5F Cool, Wallplate Heat Only (No System or Off Switch) Includes, 0.15 - 1.2A Heat Current, 0.15 - 1.2A Cool Current

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2-3/4 in.
Height	4-1/2 po
Colour/Finish Name	Classic White
Cool Current	0.15 - 1.2A
Depth	1-1/2 in.
Differential Temperature	1F Heat, 1.5F Cool
Frequency Rating	50/60Hz
Heat Current	0.15 - 1.2A
Humidity Range	0 - 90% Non-Condensing
Motor Type	Vertical
Programmability	Non-Programmable
Setting Temperature Range	50 - 90F
Stages	1H
Switch Type	Snap Action Contacts
Terminal Designations	R, W
Volts	20 - 30 VAC
