Picture of 1E78-144 SERIES 70 1STG 1H/1C THERMOSTAT

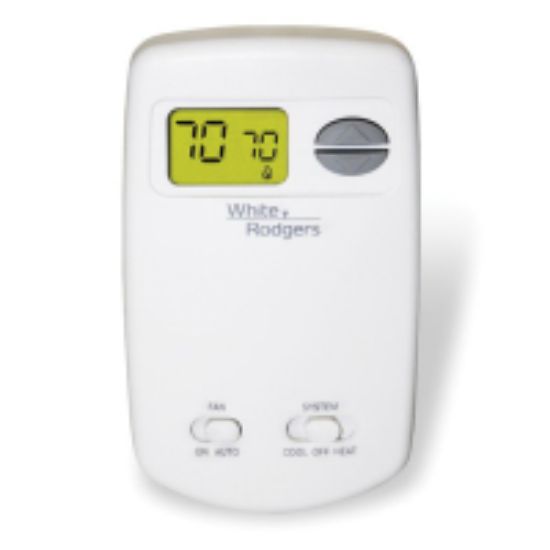

1E78-144 SERIES 70 1STG 1H/1C THERMOSTAT

Emerson 01E78 144 1H/1C Stage Non-Programmable Thermostat, 1H/1C, mV - 30 VAC, White
Manufacturer: Emerson
$0.00
This 70 series white vertical thermostat with 50/60 Hz has a 1H/1C stage and operates on 0.05/1.5A/30V. It has a 1C accuracy with a AAA battery and is non-programmable. The thermostat is 90% non-condensing and measures 3-1/4 inches width x 5-3/10 inches height x 1-1/10 inches depth. It has a setting operating temperature ranging from 45 to 90 degrees Fahrenheit and a 1.2 sq-in display size of 1.5-45 watts. The thermostat has an RC, RH, W, Y, O, B and G terminal and is suitable for heat and cooling.
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 0.05;1.5
Battery Size AAA
Colour/Finish Category Whites
Colour/Finish Name White
Configuration Vertical
Depth 1-1/10 in.
Height 5-2/7 in.
Installation Type Vertical
Maximum Temperature 90
Power Source Battery;Hardwire
Programmability Non-programmable
Stages 1H;1C
Style Name 70 Series
Temperature Range 32 to 105 Deg F
Volts 30V
Watts 1.5 - 45 W
Width 3-1/4 in.
Zones 1
Application Heat;Cool
Product Type Non-Programmable Thermostats
