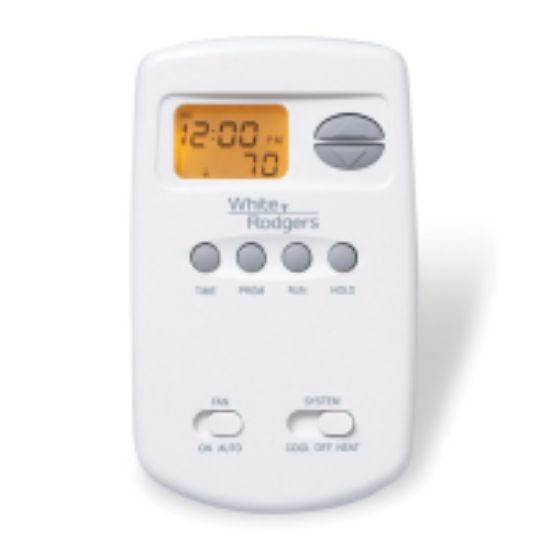

1E78-151 SERIES 70 1STG 1H/1C THERMOSTAT

White Rodgers 1E78-151 Wh5-2 Day Programmable Thermostat, 1H/1C, 20 - 30 VAC
Manufacturer: Emerson
$0.00
Programmable Thermostat, 70 Series, 3-3/16 in. Width, 5-5/16 in. Height, AMP: 1 - 1.5A, (2) AAA Battery Size, Colour/Finish Name: White, Depth: 1-1/8 in., Battery Power Source, 5-2 day Program Programmability, Stages: 1H/1C, 20 - 30 VAC Volts, Manual Changeover, 90% Non-Condensing Humidity Range, 45 - 90F Setting Temperature Range, Temperature Range: 32 - 105F Ambient, HEAT-OFF-COOL (System), AUTO-ON (FAN) Switch Position, Mounting Type: Vertical, Rc, Rh, W, Y, O, B, G Terminal Designations, Plus or Minus 1C Accuracy, 50/60Hz Frequency Rating, Differential Temperature: 0.8F Fast, 1.5F Slow Heat, 1.2F Fast Cool Fixed, 1.2F Fast, 1.5F Slow Heat Pump, 0.8F Fast, 1.2F Slow Auxiliary/Emergency Heat
Products specifications
products.specs.attributename products.specs.attributevalue
Width 3-3/16 in.
Height 5-5/16 in.
Accuracy Plus or Minus 1C
AMP 1 - 1.5A
Changeover Manual
Colour/Finish Name White
Depth 1-1/8 in.
Differential Temperature 0.8F Fast, 1.5F Slow Heat, 1.2F Fast Cool Fixed, 1.2F Fast, 1.5F Slow Heat Pump, 0.8F Fast, 1.2F Slow Auxiliary/Emergency Heat
Frequency Rating 50/60Hz
Humidity Range 90% Non-Condensing
Motor Type Vertical
Power Source Battery
Programmability 5-2 day Program
Setting Temperature Range 45 - 90F
Stages 1H/1C
Switch Position HEAT-OFF-COOL (System), AUTO-ON (FAN)
Temperature Range 32 - 105F Ambient
Terminal Designations Rc, Rh, W, Y, O, B, G
Volts 20 - 30 VAC
