WHR1F85U22NP

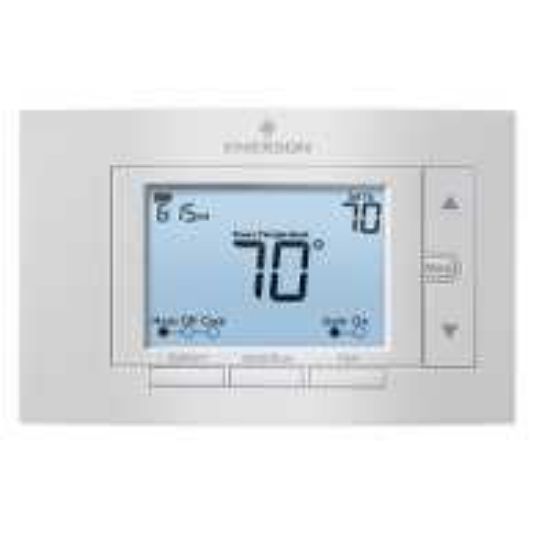

White Rodgers 1F85U-22NP Universal Non-Programmable Thermostat 2H/2C or 2H/1C mV - 30 VAC
Manufacturer: Emerson
$0.00
Universal Non-Programmable Thermostat, 80 Series, 6 in. Width, 3-3/4 in. Height, AMP: 1.5 - 2.5A, Colour/Finish Name: White, Depth: 1-1/8 in., Battery or Hardwired Power Source, Programmability: Non-Programmable, Stages: 2H/2C (Multi-Stage) or 2H/1C (Heat Pumps), mV - 30 VAC Battery, 20 - 30 VAC Hardwire Volts, Humidity Range: 90% Non-Condensing, Setting Temperature Range: 45 - 99F, Temperature Range: 32 - 105F Ambient, Switch Position: HEAT-OFF-COOL-AUXILIARY/EMERGENCY (System), AUTO-ON (FAN), 5 sq-in Universal Display, Mounting Type: Horizontal, Terminal Designations: Rc, Rh, C, W/E, W2, Y, Y2, O/B/6, G, L, Plus or Minus 1C Accuracy, 50/60Hz Frequency Rating, Differential Temperature: 0.5F at 6F/hr Fast, 0.75F at 6F/hr Medium, 1.9F at 6F/hr Slow Heat, 0.9F at 6F/hr Fast, 1.2F at 6F/hr Medium, 1.7F at 6F/hr Slow Cool, 0.9F at 6F/hr Fast, 1.2F at 6F/hr Medium, 1.7F at 6F/hr Slow Heat Pump (Heat and Cool), 0.5F at 6F/hr Fast, 0.75F at 6F/hr Medium, 1.9F at 6F/hr Slow Heat Pump (Auxiliary)
Products specifications
products.specs.attributename products.specs.attributevalue
Width 6 in.
Height 3-3/4 po
Accuracy Plus or Minus 1C
AMP 1.5 - 2.5A
Colour/Finish Name White
Depth 1-1/8 in.
Differential Temperature 0.5F at 6F/hr Fast, 0.75F at 6F/hr Medium, 1.9F at 6F/hr Slow Heat, 0.9F at 6F/hr Fast, 1.2F at 6F/hr Medium, 1.7F at 6F/hr Slow Cool, 0.9F at 6F/hr Fast, 1.2F at 6F/hr Medium, 1.7F at 6F/hr Slow Heat Pump (Heat and Cool), 0.5F at 6F/hr Fast, 0.75F at 6F/hr Medium, 1.9F at 6F/hr Slow Heat Pump (Auxiliary)
Display Type 5 sq-in Universal
Frequency Rating 50/60Hz
Humidity Range 90% Non-Condensing
Motor Type Horizontal
Power Source Battery or Hardwired
Programmability Non-Programmable
Setting Temperature Range 45 - 99F
Stages 2H/2C (Multi-Stage) or 2H/1C (Heat Pumps)
Switch Position HEAT-OFF-COOL-AUXILIARY/EMERGENCY (System), AUTO-ON (FAN)
Temperature Range 32 - 105F Ambient
Terminal Designations Rc, Rh, C, W/E, W2, Y, Y2, O/B/6, G, L
Volts mV - 30 VAC Battery, 20 - 30 VAC Hardwire
