WHR1F86344

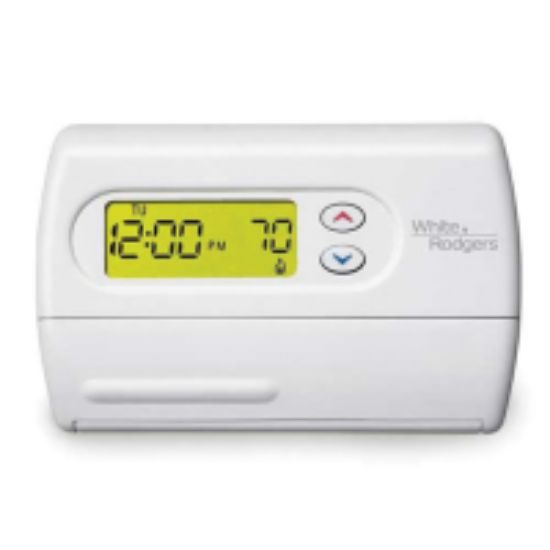

White Rodgers 1F86-344 WhDigital Non-Programmable Thermostat, 1H/1C, mV - 30 VAC Battery

Manufacturer: Emerson

$0.00

Qty:

Digital Non-Programmable Thermostat, Classic 80 Series, 6 in. Width, 3-7/8 in. Height, AMP: 1 - 1.5A, Colour/Finish Name: White, Depth: 1-3/16 in., Battery or Hardwired Power Source, Non-Programmable Programmability, Stages: 1H/1C, mV - 30 VAC Battery, 20 - 30 VAC Hardwire Volts, Manual Changeover, 90% Non-Condensing Humidity Range, 45 - 99F Setting Temperature Range, Temperature Range: 32 - 105F Ambient, HEAT-OFF-COOL (System), AUTO-ON (FAN) Switch Position, 2.2 sq-in Display Type, Mounting Type: Horizontal, Rc, Rh, C, W, Y, O/B, G Terminal Designations, Plus or Minus 1C Accuracy, 50/60Hz Frequency Rating, Differential Temperature: 0.6F or 1.5F Heat, 1.2F Cool Conventional, 0.75F or 1.2F Heat and Cool Heat Pump

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	6 in.
Height	3-7/8 po
Accuracy	Plus or Minus 1C
AMP	1 - 1.5A
Changeover	Manual
Colour/Finish Name	White
Depth	1-3/16 in.
Differential Temperature	0.6F or 1.5F Heat, 1.2F Cool Conventional, 0.75F or 1.2F Heat and Cool Heat Pump
Display Type	2.2 sq-in
Frequency Rating	50/60Hz
Humidity Range	90% Non-Condensing
Motor Type	Horizontal
Power Source	Battery or Hardwired
Programmability	Non-Programmable
Setting Temperature Range	45 - 99F
Stages	1H/1C
Switch Position	HEAT-OFF-COOL (System), AUTO-ON (FAN)
Temperature Range	32 - 105F Ambient
Terminal Designations	Rc, Rh, C, W, Y, O/B, G
Volts	mV - 30 VAC Battery, 20 - 30 VAC Hardwire
