WHR1F86EZ0251

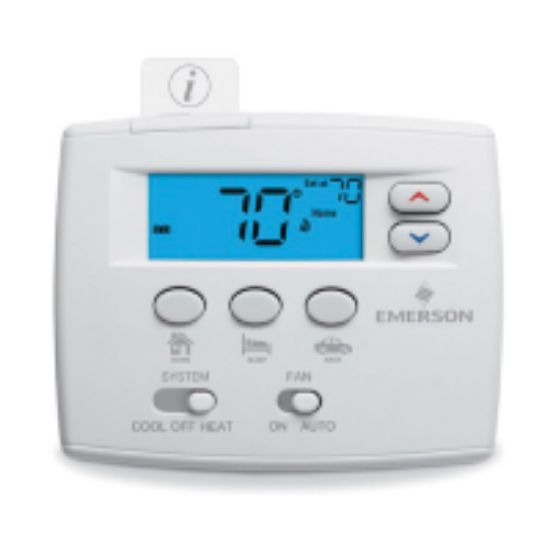

White Rodgers Blue Easy Set 1F86EZ-0251 WhNon-Programmable Thermostat, 1H/1C, 0 - 30 VAC

Manufacturer: Emerson

$0.00

Qty:

Blue Easy Set Non-Programmable Thermostat, 4.8 in. Width, 3.8 in. Height, AMP: 0.05 - 1.5A, Colour/Finish Name: White, Depth: 1-1/2 in., Battery or Hardwired Power Source, Non-Programmable Programmability, Stages: 1H/1C, 0 - 30 VAC Volts, Manual Changeover, 90% Non-Condensing Humidity Range, 45 - 90F Setting Temperature Range, Temperature Range: 32 - 105F Ambient, HEAT-OFF-COOL (System), AUTO-ON (FAN) Switch Position, 2 sq-in Display Type, Mounting Type: Horizontal, R, C, W, Y, O/B, G Terminal Designations, Plus or Minus 15C Accuracy, 50/60Hz Frequency Rating, Differential Temperature: 0.6 - 1.7F, (2) AA Alkaline Battery Size

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	4.8 in.
Height	3.8 po
Accuracy	Plus or Minus 15C
AMP	0.05 - 1.5A
Changeover	Manual
Colour/Finish Name	White
Depth	1-1/2 in.
Differential Temperature	0.6 - 1.7F
Display Type	2 sq-in
Frequency Rating	50/60Hz
Humidity Range	90% Non-Condensing
Motor Type	Horizontal
Power Source	Battery or Hardwired
Programmability	Non-Programmable
Setting Temperature Range	45 - 90F
Stages	1H/1C
Switch Position	HEAT-OFF-COOL (System), AUTO-ON (FAN)
Temperature Range	32 - 105F Ambient
Terminal Designations	R, C, W, Y, O/B, G
Volts	0 - 30 VAC
