WHR3F01130

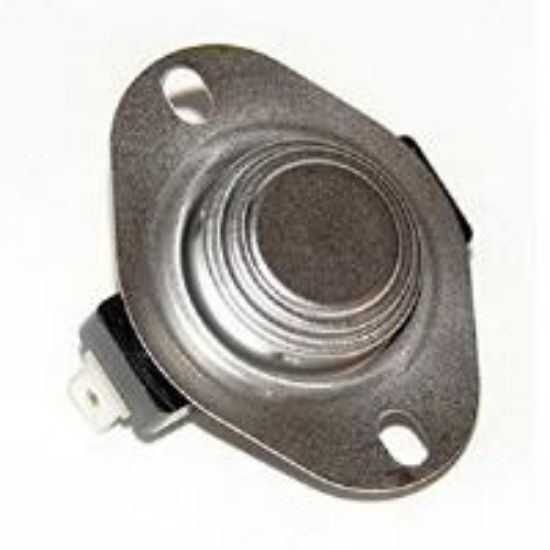

White Rodgers 3F01-130 Snap Disc Fan Control, 130F Cut-In, 115F Cut-Out, SPST

Manufacturer: Emerson

$0.00

Qty:

Snap Disc Fan Control, 3F01 Series, Temperature Rating: 130F Cut-In, 115F Cut-Out, AMP: FLA: 10A at 120 VAC/5A at 240 VAC, Resistive: 25A 120/240 VAC/21.6A at 277 VAC, Switch Action: SPST, Close on Rise, Pilot Duty Rating: 125 VA at 120/240/277 VAC, Mounting Type: 3/4 in. Flanged Airstream Mount, Differential Temperature: 15F, Maximum Temperature: 350F Ambient

Products specifications

products.specs.attributename	products.specs.attributevalue
AMP	FLA: 10A at 120 VAC/5A at 240 VAC, Resistive: 25A 120/240 VAC/21.6A at 277 VAC
Differential Temperature	15F
Maximum Temperature	350F Ambient
Motor Type	3/4 in. Flanged Airstream Mount
Pilot Duty Rating	125 VA at 120/240/277 VAC
Switch Action	SPST, Close on Rise
Temperature Rating	130F Cut-In, 115F Cut-Out
