WHR3L03190

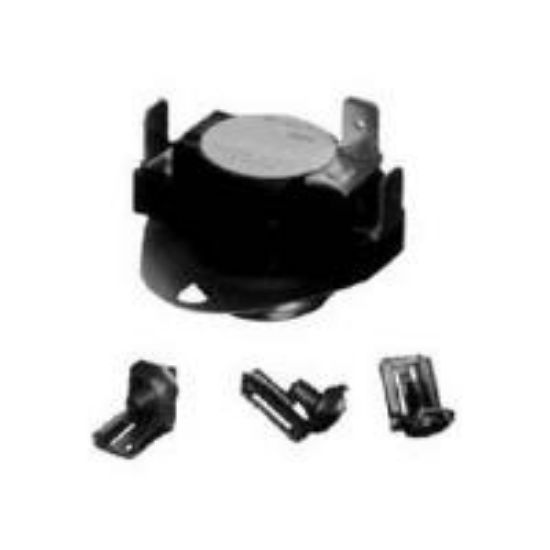

White Rodgers 3L03-190 Snap Disc Limit Control, 170F Cut-In/Closes , 190F Cut-Out/Opens, SPDT

Manufacturer: Emerson

$0.00

Qty:

Snap Disc Limit Control, 3L Series, Temperature Rating: 170F Cut-In/Closes, 190F Cut-Out/Opens (Terminal 1 and 3 Open on Rise), 190F Cut-In/Closes, 170F Cut-Out/Opens (Terminal 1 and 2 Close on Rise), AMP: FLA: 5.8A at 120 VAC/2.9A at 240 VAC (1 and 2 Close on Rise), 10A at 120 VAC/5A at 240 VAC, Resistive: 25A 120/240 VAC/21.6A at 277 VAC (1 and 3 Open on Rise), Switch Action: SPDT, Pilot Duty Rating: 125 VA at 120/240/277 VAC, Mounting Type: 3/4 in. Flanged Airstream Mount, Differential Temperature: 20F

Products specifications

products.specs.attributename	products.specs.attributevalue
AMP	FLA: 5.8A at 120 VAC/2.9A at 240 VAC (1 and 2 Close on Rise), 10A at 120 VAC/5A at 240 VAC, Resistive: 25A 120/240 VAC/21.6A at 277 VAC (1 and 3 Open on Rise)
Differential Temperature	20F
Motor Type	3/4 in. Flanged Airstream Mount
Pilot Duty Rating	125 VA at 120/240/277 VAC
Switch Action	SPDT
Temperature Rating	170F Cut-In/Closes , 190F Cut-Out/Opens (Terminal 1 and 3 Open on Rise), 190F Cut-In/Closes , 170F Cut-Out/Opens (Terminal 1 and 2 Close on Rise)
