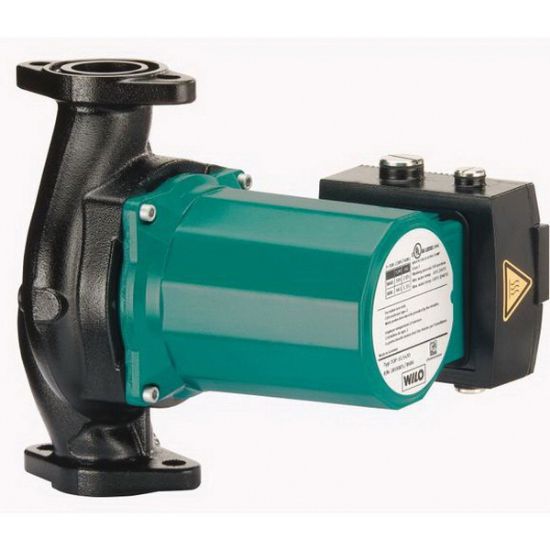

Picture of TOP S 1.25X15 115/1/60 2SPD CI CIRC

TOP S 1.25X15 115/1/60 2SPD CI CIRC

Wilo TOP S 1.25X15 Cast Iron 2-Speed Standard Commercial Circulator Pump, 115V at 60Hz, 1 PH, 1/8 hp
Manufacturer: Wilo
$0.00
Standard Commercial Circulator Pump, Model: TOP S 1.25X15, 8.937 in. Length, 6-3/4 in. Width, 6-1/2 in. Height, Material: Cast Iron, AMP: 1.3 - 1.4A, End Connection 1: 2-Bolt Flanged, Fitting Size 1: 1-1/4 in., Flow Rate: 27 gpm, Horsepower: 1/8 hp, 18.4 ft. Maximum Head, Maximum Temperature: 14 - 248F, Phase: 1 PH, Pressure - Maximum: 145 psi, Wet Rotor Pump Motor, 1 PH Pump, 1 Pump Stage, RPM: 2950 - 3200 RPM, Specifications - NEMA: NEMA 2, Specifications - UL Listed: Yes, 115V at 60 Hz, 115V Volts, Number of Speeds: 2, Stainless Steel Shaft, Metal Impregnated Carbon Bearing, Number of Poles: 2, 80W Power Rating, Polypropylene GF50 Impeller, Environmental Conditions: 32 - 104F Ambient Temperature, Class H Protection, 140 - 145W Power Consumption
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 1.3;1.4
End Connection Flanged x IPS
End Connection 1 Flanged
End Connection 2 IPS
Fitting Size 1 1-1/4 in.
Fitting Sizes 1-1/4 in.
Flow Rate 27 gpm
Height 6-1/2 in.
Horsepower 1/8 hp
Length 8-47/50 in.
Material Cast Iron
Maximum Feet of Head 18.4 ft.
Maximum Temperature 248
Pressure - Maximum 145 psi
Pump Motor Type Wet Rotor
Pump Phase Single Phase
RPM 3200
Specifications - NEMA NEMA 2
Specifications - UL Listed Yes
VAC at 60 Hz 115V
Volts 115V
Width 6-3/4 in.
Product Type Centrifugal Pumps
Pump Stage 1
Minimum Temperature 14
Phase Single Phase
