WIL2067544

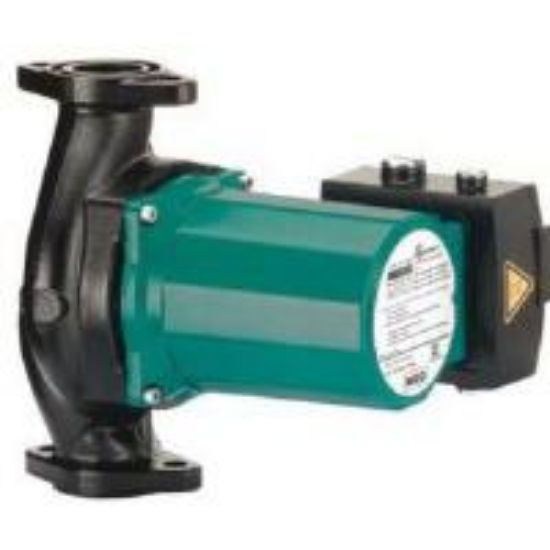

Wilo 2067544 Cast Iron 2-Speed Top S Standard Circulating Pump, 115 VAC at 60Hz, 1 PH, 0.25 hp, 1-1/4 x 35 in.

Manufacturer: Wilo Pumps

$0.00

Qty:

Top S Standard Circulating Pump, 9-5/16 in. Length, 7-1/8 in. Width, 8-1/2 in. Height, Cast Iron, AMP: 2.9 - 3.1A, End Connection 1: Flanged, Flow Rate: 48 gpm US, Horsepower: 0.25 hp, 32.6 ft. Maximum Head, Maximum Temperature: 14 - 248F, Phase: 1 PH, Pressure - Maximum: 145 psi, 3050 - 3250 RPM, Specifications - UL Listed: Yes, 115 VAC at 60 Hz, Size: 1-1/4 x 35 in., Number of Speeds: 2, 180W Power Rating, 305 - 315W Power Consumption, Plastic Impeller, Stainless Steel Shaft, Metal Impregnated Carbon Bearing, Colour/Finish Name: Cataphoretic Coated, Environmental Conditions: Ambient Temperature Rating: 32 - 104F, Protection Class: H, NEMA 2 Enclosure, Additional Specifications: Number of Poles: 2, Capacitor: 24mfd

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9-5/16 in.
Width	7-1/8 in.
Height	8-1/2 po
Material	Cast Iron
AMP	2.9 - 3.1A
Bearing Material	Metal Impregnated Carbon
Colour/Finish Name	Cataphoretic Coated
Enclosure	NEMA 2
End Connection 1	Flanged
Environmental Conditions	Ambient Temperature Rating: 32 - 104F, Protection Class: H
Flow Rate	48 gpm US
Horsepower	0.25 hp
Impeller Material	Plastic
Maximum Feet of Head	32.6 ft.
Maximum Temperature	14 - 248F
Number of Poles	2
Phase	1 PH
Power Consumption	305 - 315W
Power Rating	180W
Pressure - Maximum	145 psi
RPM	3050 - 3250 RPM
Shaft Material	Stainless Steel
Size	1-1/4 x 35 in.
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
