WIL2067587

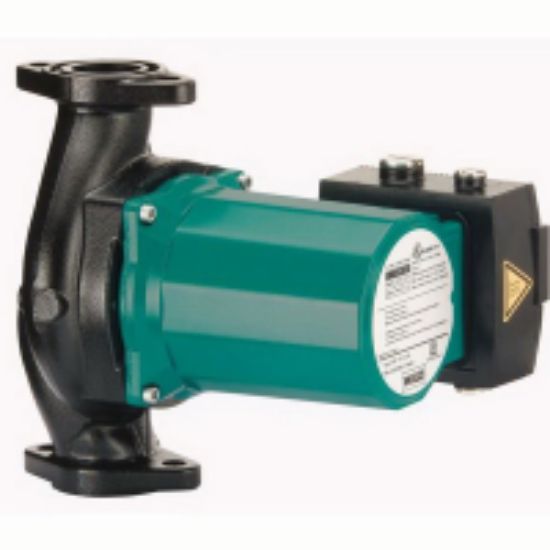

Wilo TOP S 2X50 Cast Iron 2-Speed Standard Commercial Circulator Pump, 575V at 60 Hz, 3 PH, 1-1/2 hp

Manufacturer: Wilo Pumps

$0.00

Qty:

Standard Commercial Circulator Pump, Model: TOP S 2X50, 14-7/8 in. Length, 9-1/4 in. Width, 13-1/2 in. Height, Cast Iron, AMP: 1.4 - 2.1A, End Connection 1: 2-Bolt Flanged, Fitting Size 1: 2 in., 160 gpm Flow Rate, Horsepower: 1-1/2 hp, 43.2 ft. Maximum Feet of Head, 14 - 248F Maximum - Temperature, Phase: 3 PH, Pressure - Maximum: 145 psi, Wet Rotor Pump Motor Type, 3 PH Pump Phase, 1 Pump Stage, 3080 - 3420 RPM, NEMA 2 Specifications - NEMA, Specifications - UL Listed: Yes, 575V VAC at 60 Hz, 2 Number of Speeds, 1100W Power Rating, Polypropylene (50% Glass-Filled) Impeller Material, Stainless Steel Shaft Material, Metal Impregnated Carbon Bearing Material, 32 - 104F Ambient Temperature, Class H Protection Environmental Conditions, 1105 - 1480W Power Consumption

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	14-7/8 in.
Width	9-1/4 in.
Height	13-1/2 po
Material	Cast Iron
AMP	1.4 - 2.1A
Bearing Material	Metal Impregnated Carbon
End Connection 1	2-Bolt Flanged
Environmental Conditions	32 - 104F Ambient Temperature, Class H Protection
Fitting Size 1	2 in.
Flow Rate	160 gpm
Horsepower	1-1/2 hp
Impeller Material	Polypropylene (50% Glass-Filled)
Maximum Feet of Head	43.2 ft.
Maximum Temperature	14 - 248F
Phase	3 PH
Power Consumption	1105 - 1480W
Power Rating	1100W
Pressure - Maximum	145 psi
Pump Motor Type	Wet Rotor
Pump Phase	3 PH
Pump Stage	1
RPM	3080 - 3420 RPM
Shaft Material	Stainless Steel
Specifications - NEMA	NEMA 2
Specifications - UL Listed	Yes
VAC at 60 Hz	575V
