2705045 IPL 2.5-50/260 2HP 575/3/60 TEFC

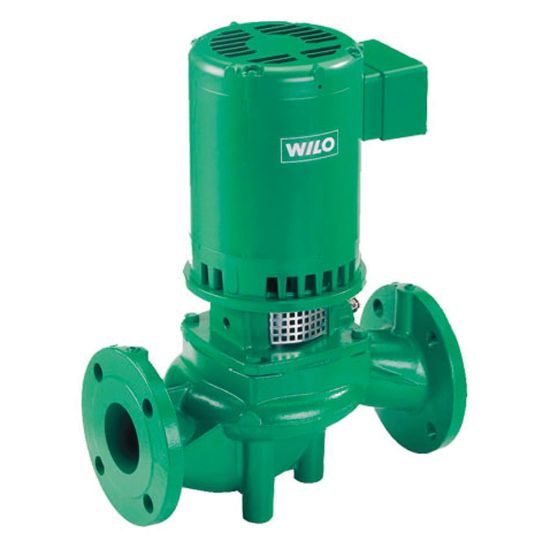

Wilo IPL 2.5-50/260-2 Cast Iron Inline Centrifugal Circulator Pump, 575V at 60Hz, 3 PH, 2 hp

Manufacturer: Wilo Pumps

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	21-5/8 in.
Width	9-5/8 in.
Height	13-1/2 po
Material	Cast Iron
AMP	2.3A
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	104F Ambient Temperature
Fitting Size 1	2-1/2 in.
Fitting Size 2	2-1/2 in.
Flow Rate	260 gpm US
Horsepower	2 hp
Impeller	Composite
Material Type	316L
Maximum Feet of Head	50 ft.
Maximum Temperature	15 - 250F
Number of Poles	2
Phase	3 PH
Power Rating	1.5kW
Pressure - Maximum	145 psi
Pump Motor Type	TEFC
Pump Stage	1
RPM	3500 RPM
Shaft Material	Stainless Steel
VAC at 60 Hz	575V
