STAR S 21 FX 3 SPD CAST IRON, FLGD, 115V

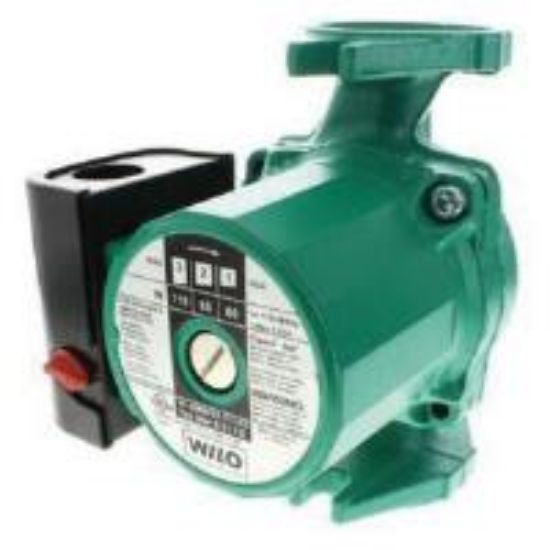

Wilo S21 FX Cast Iron 3-Speed Star S Circulating Pump, 115 VAC at 60Hz, 1 PH, 0.05 hp

Manufacturer: Wilo Pumps

$0.00

Qty:

Star S Circulating Pump, Model: S21 FX, 6-3/8 in. Length, 5-1/16 in. Width, 6-3/8 in. Height, Cast Iron, AMP: 0.52 - 0.92A, End Connection 1: Flanged Rotated 90 Degree, Flow Rate: 19 gpm US, Horsepower: 0.05 hp, 21 ft. Maximum Head, Maximum Temperature: 14 - 230F, Phase: 1 PH, Pressure - Maximum: 140 psi, 1300 - 2700 RPM, Specifications - UL Listed: Yes, 115 VAC at 60 Hz, Number of Speeds: 3, 40W Power Rating, 56 - 110W Power Consumption, Engineered ComposImpeller, Stainless Steel Shaft, Metal Impregnated Carbon Bearing, Environmental Conditions: Ambient Temperature Rating: 104F, Protection Class: F, Additional Specifications: Number of Poles: 2, Capacitor: 9mfd

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6-3/8 in.
Width	5-1/16 in.
Height	6-3/8 po
Material	Cast Iron
AMP	0.52 - 0.92A
Bearing Material	Metal Impregnated Carbon
End Connection 1	Flanged Rotated 90 Degree
Environmental Conditions	Ambient Temperature Rating: 104F, Protection Class: F
Flow Rate	19 gpm US
Horsepower	0.05 hp
Impeller Material	Engineered Composite
Maximum Feet of Head	21 ft.
Maximum Temperature	14 - 230F
Number of Poles	2
Phase	1 PH
Power Consumption	56 - 110W
Power Rating	40W
Pressure - Maximum	140 psi
RPM	1300 - 2700 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
