CIRCO STAR 3 BS7 BRZ, 3/4 SWT,115V

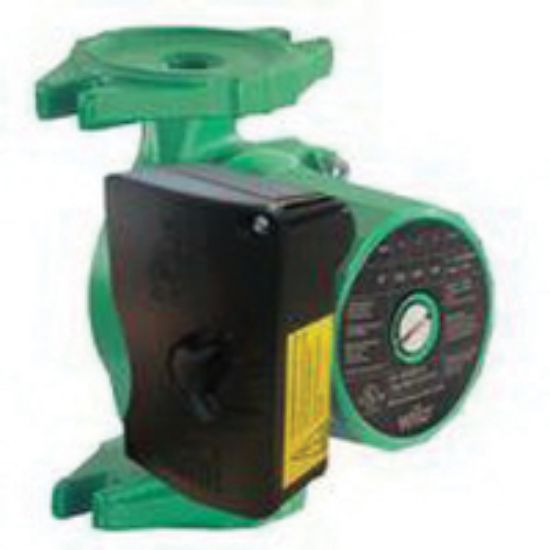

Wilo Star 3 BS7 Bronze 1-Speed Wet Rotor Circulating Pump, 115 VAC at 60Hz, 1 PH, 0.03 hp

Manufacturer: Wilo Pumps

$0.00

Qty:

Wet Rotor Circulating Pump, Model: Star 3 BS7, 4-15/16 in. Length, 5-1/16 in. Width, 5 in. Height, Bronze, AMP: 0.49A, End Connection 1: Sweat, End Connection 2: Sweat, Fitting Size 1: 3/4 in., Fitting Size 2: 3/4 in., 5.5 gpm US Flow Rate, Horsepower: 0.03 hp, Plastic Impeller, 3.5 ft. Maximum Feet of Head, 14 - 230F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 140 psi, 3400 RPM, Specifications - UL Listed: Yes, 115 VAC VAC at 60 Hz, 1 Number of Speeds, 20W Power Rating, 50W at 0.07 hp Power Consumption, Stainless Steel Shaft Material, Carbon, Metal Impregnated Bearing Material, 104F Ambient Temperature Environmental Conditions, Capacitor: 7mfd, Insulation Class: F Additional Specifications

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4-15/16 in.
Width	5-1/16 in.
Height	5 po
Material	Bronze
AMP	0.49A
Bearing Material	Carbon, Metal Impregnated
End Connection 1	Sweat
End Connection 2	Sweat
Environmental Conditions	104F Ambient Temperature
Fitting Size 1	3/4 in.
Fitting Size 2	3/4 in.
Flow Rate	5.5 gpm US
Horsepower	0.03 hp
Impeller	Plastic
Maximum Feet of Head	3.5 ft.
Maximum Temperature	14 - 230F
Number of Poles	2
Phase	1 PH
Power Consumption	50W at 0.07 hp
Power Rating	20W
Power Source	Hardwired
Pressure - Maximum	140 psi
RPM	3400 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
