17FX CAST IRON FLANGED CIRCULATOR 11

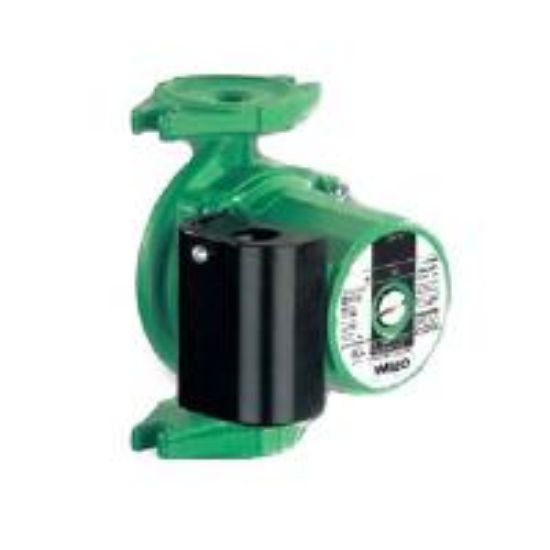

Wilo 4100870 Cast Iron 1-Speed Star Circulating Pump, 115 VAC at 60Hz, 1 PH, 0.1 hp

Manufacturer: Wilo Pumps

$0.00

Qty:

Star Circulating Pump, 17 FX Series, 7 in. Length, 5-1/8 in. Width, 8-1/2 in. Height, Cast Iron, AMP: 1.45A, End Connection 1: Flanged Rotated 90 Degree, Flow Rate: 50 gpm US, Horsepower: 0.1 hp, 17 ft. Maximum Head, Maximum Temperature: 14 - 230F, Phase: 1 PH, Pressure - Maximum: 140 psi, 3000 RPM, Specifications - UL Listed: Yes, 115 VAC at 60 Hz, Number of Speeds: 1, 70W Power Rating, 166W Power Consumption, Engineered ComposImpeller, Stainless Steel Shaft, Metal Impregnated Carbon Bearing, Environmental Conditions: Ambient Temperature Rating: 104F, Protection Class: F, Additional Specifications: Number of Poles: 2, Capacitor: 12mfd

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7 in.
Width	5-1/8 in.
Height	8-1/2 po
Material	Cast Iron
AMP	1.45A
Bearing Material	Metal Impregnated Carbon
End Connection 1	Flanged Rotated 90 Degree
Environmental Conditions	Ambient Temperature Rating: 104F, Protection Class: F
Flow Rate	50 gpm US
Horsepower	0.1 hp
Impeller Material	Engineered Composite
Maximum Feet of Head	17 ft.
Maximum Temperature	14 - 230F
Number of Poles	2
Phase	1 PH
Power Consumption	166W
Power Rating	70W
Pressure - Maximum	140 psi
RPM	3000 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
