4118271 STAR Z15 BS7 BRZ RECIRC 3/4" SWT

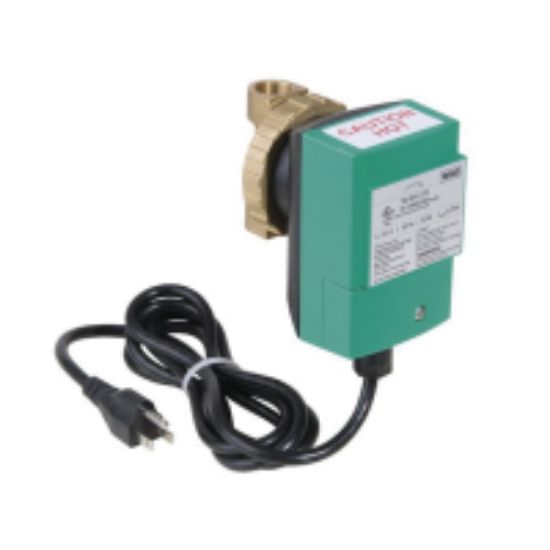

Wilo Star Z15 BS5 Eco-Brass 1-Speed Standard Circulating Pump, 115 VAC at 60Hz, 1 PH, 0.043 hp, 3/4 in. Sweat

Manufacturer: Wilo Pumps

$0.00

Qty:

Standard Circulating Pump, Model: Star Z15 BS5, 3-1/16 in. Length, 4-9/16 in. Height, Eco-Brass, AMP: 0.77A, End Connection 1: Sweat, End Connection 2: Sweat, Fitting Size 1: 3/4 in., Fitting Size 2: 3/4 in., 2 gpm US Flow Rate, Horsepower: 0.043 hp, Plastic PPE (Noryl) Impeller, 4.8 ft. Maximum Feet of Head, 68 - 150F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 145 psi, 3100 RPM, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, 115 VAC VAC at 60 Hz, 1 Number of Speeds, 32W at 0.043 hp Power Consumption, Stainless Steel Shaft Material, Epoxy-Impregnated Carbon Bearing Material, 105F Ambient Temperature, Class IP44 Protection Environmental Conditions, Insulation Class: F Additional Specifications

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3-1/16 in.
Height	4-9/16 po
Material	Eco-Brass
AMP	0.77A
Bearing Material	Epoxy-Impregnated Carbon
End Connection 1	Sweat
End Connection 2	Sweat
Environmental Conditions	105F Ambient Temperature, Class IP44 Protection
Fitting Size 1	3/4 in.
Fitting Size 2	3/4 in.
Flow Rate	2 gpm US
Horsepower	0.043 hp
Impeller	Plastic PPE (Noryl)
Maximum Feet of Head	4.8 ft.
Maximum Temperature	68 - 150F
Phase	1 PH
Power Consumption	32W at 0.043 hp
Power Source	Hardwired
Pressure - Maximum	145 psi
RPM	3100 RPM
Shaft Material	Stainless Steel
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
