WIL4190420

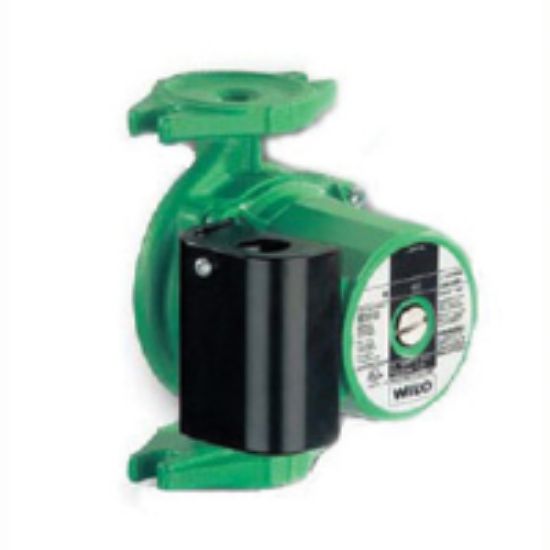

Wilo Star S 33 FC Cast Iron 3-Speed Wet Rotor Circulating Pump, 115 VAC at 60Hz, 1 PH, 1/6 hp

Manufacturer: Wilo Pumps

$0.00

Qty:

Wet Rotor Circulating Pump, Model: Star S 33 FC, 7 in. Length, 5-1/16 in. Width, 6-3/8 in. Height, Cast Iron, AMP: 0.85 - 1.8A, End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 3/4, 1-1/4, 1-1/2 in., Fitting Size 2: 3/4, 1-1/4, 1-1/2 in., 19 gpm US Flow Rate, Horsepower: 1/6 hp, Engineered ComposImpeller, 21 ft. Maximum Feet of Head, -14 to 230F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 140 psi, 1300 - 2700 RPM, Specifications - UL Listed: Yes, 115 VAC VAC at 60 Hz, 3 Number of Speeds, 98 - 202W Power Rating, Stainless Steel Shaft Material, Carbon, Metal Impregnated Bearing Material, 104F Ambient Temperature Environmental Conditions, Material Type: 420SS

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7 in.
Width	5-1/16 in.
Height	6-3/8 po
Material	Cast Iron
AMP	0.85 - 1.8A
Bearing Material	Carbon, Metal Impregnated
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	104F Ambient Temperature
Fitting Size 1	3/4, 1-1/4, 1-1/2 in.
Fitting Size 2	3/4, 1-1/4, 1-1/2 in.
Flow Rate	19 gpm US
Horsepower	1/6 hp
Impeller	Engineered Composite
Material Type	420SS
Maximum Feet of Head	21 ft.
Maximum Temperature	-14 to 230F
Phase	1 PH
Power Rating	98 - 202W
Power Source	Hardwired
Pressure - Maximum	140 psi
RPM	1300 - 2700 RPM
Shaft Material	Stainless Steel
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
