Picture of 760-12 1/2" DBL CHCK VLV ASS W/INT ATM V

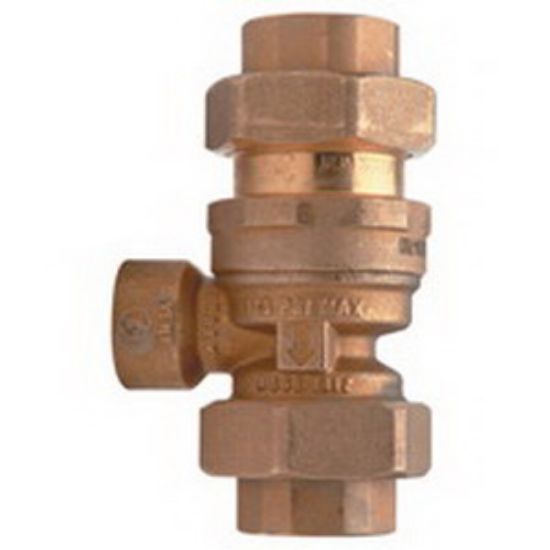

760-12 1/2" DBL CHCK VLV ASS W/INT ATM V

Zurn 91000192 Model 760 1/2 in. FNPT Union Forged Brass Dual Check Backflow Preventer Assembly
Manufacturer: Zurn
$0.00
Dual Check Backflow Preventer Assembly, Model: 760, 4-1/8 in. Length, 1-7/8 in. Width, 2-1/2 in. Height, Material: Forged Brass, End Connection 1: FNPT Union, End Connection 2: FNPT Union, Maximum Temperature: 210F, Pressure - Maximum: 175 psi, Recommended Valve Application: Water, Specifications - ANSI: ANSI B1.20.1, Specifications - ASSE Standards: ASSE 1012, Valve Size: 1/2 in.
Products specifications
products.specs.attributename products.specs.attributevalue
Diameter 1-7/8 in.
End Connection FNPT Union
End Connection 1 Threaded
End Connection 2 Threaded
Height 2-1/2 in.
Length 4-1/8 in.
Material Forged Brass
Maximum Temperature 210
Pressure - Maximum 175 psi
Recommended Valve Application Water
Specifications - ANSI ANSI B1.20.1;ANSI B16.22
Specifications - ASSE Standards ASSE 1012
Specifications - CSA Certified CSA B64.3
Style Name Model 760
Valve Size 1/2 in.
Valve Type Dual Check Backflow Preventer Assembly
Weight 1.30 lb
Width 1-7/8 in.
Product Type Backflow Preventers
