WIL950XLT2

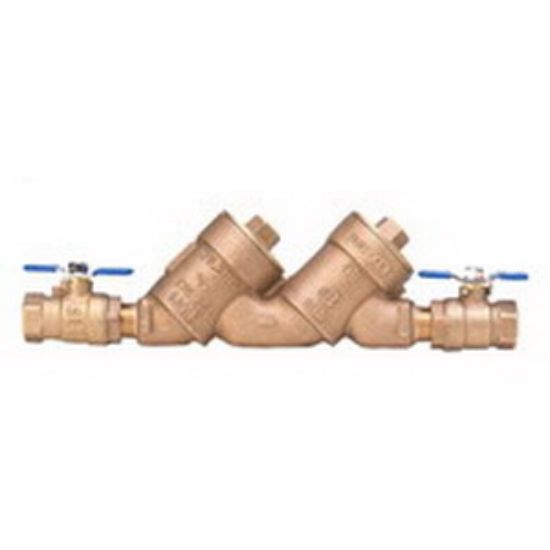

950XLT Cast Bronze Double Check Valve Assembly, 2 in. Threaded

Manufacturer: Zurn

$0.00

Qty:

Double Check Valve Assembly, Model: 950XLT, 21-3/8 in. Length, 9-7/16 in. Width, 5-11/16 in. Height, Material: Cast Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Maximum Temperature: 180F, Pressure - Maximum: 175 psi, Recommended Valve Application: Water, Specifications - ANSI: ANSI B1.20.1, Specifications - ASSE Standards: ASSE 1015, Specifications - ASTM: ASTM A-584, Specifications - AWWA: AWWA C-510, Specifications - NSF Certified: Yes, Noryl Seat Ring, Silicone Seat Disc Valve Seat, Valve Size: 2 in., Ball Valve

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	21-3/8 in.
Width	9-7/16 in.
Height	5-11/16 po
Material	Cast Bronze
End Connection 1	Threaded
End Connection 2	Threaded
Maximum Temperature	180F
Pressure - Maximum	175 psi
Recommended Valve Application	Water
Specifications - ANSI	ANSI B1.20.1
Specifications - ASSE Standards	ASSE 1015
Specifications - AWWA	AWWA C-510
Specifications - NSF Certified	Yes
Valve Seat Material	Noryl Seat Ring, Silicone Seat Disc
Valve Size	2 in.
Valve Type	Ball
