975-1XL LLC 1" REDUC PRESS PRINCIP ASS

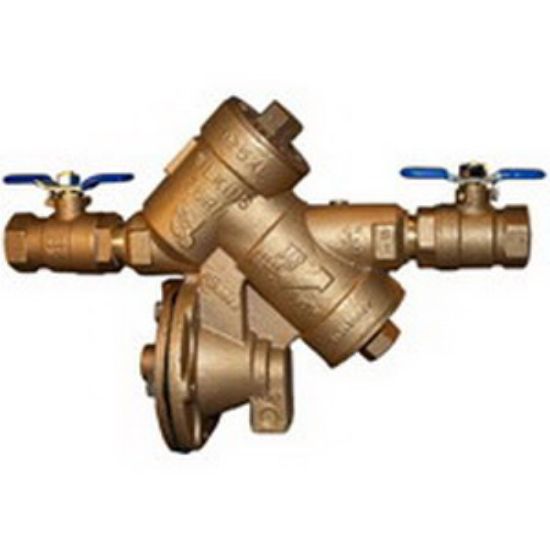

975XL Cast Bronze Reduced Pressure Principle Assembly, 1 in. Threaded

Manufacturer: Zurn

$0.00

Qty:

Reduced Pressure Principle Assembly, Model: 975XL, 13 in. Length, 5-1/8 in. Width, 8-1/2 in. Height, Material: Cast Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Maximum Temperature: 180F, Pressure - Maximum: 175 psi, Recommended Valve Application: Water, Specifications - ANSI: ANSI B1.20.1, Specifications - ASSE Standards: ASSE 1013, Specifications - ASTM: ASTM A-584, Specifications - AWWA: AWWA C-511, Specifications - CSA Certified: CSA B64.4, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Noryl Seat Ring, Silicone Seat Disc Valve Seat, Valve Size: 1 in., Ball Valve

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	13 in.
Width	5-1/8 in.
Height	8-1/2 po
Material	Cast Bronze
End Connection 1	Threaded
End Connection 2	Threaded
Maximum Temperature	180F
Pressure - Maximum	175 psi
Recommended Valve Application	Water
Specifications - ANSI	ANSI B1.20.1
Specifications - ASSE Standards	ASSE 1013
Specifications - AWWA	AWWA C-511
Specifications - CSA Certified	CSA B64.4
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
Valve Seat Material	Noryl Seat Ring, Silicone Seat Disc
Valve Size	1 in.
Valve Type	Ball
