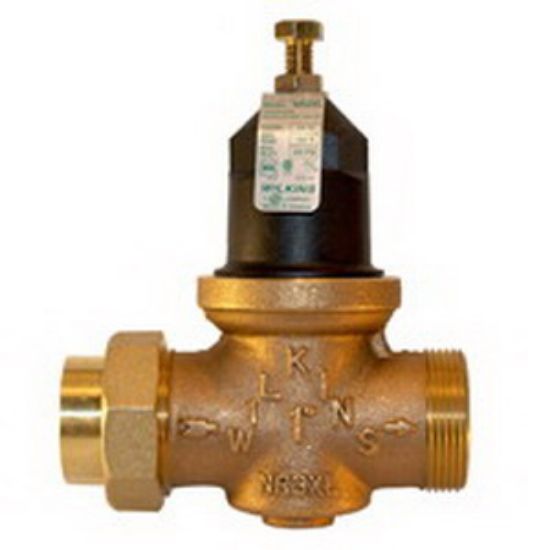

Picture of 114-NR3XL LLC 11/4" WATER PRES RED 15-75

114-NR3XL LLC 11/4" WATER PRES RED 15-75

Zurn 114-NR3XL Model NC3XL Lead Free 1-1/4 in. Single Union FNPT Cast Bronze Pressure Reducing Valve
Manufacturer: Zurn
$0.00
Pressure Reducing Valve, Model: NC3XL, 6-3/16 in. Length, 3 in. Width, 7-3/4 in. Height, Material: Cast Bronze, End Connection 1: Single Union FNPT, End Connection 2: Single Union FNPT, Lead Law Compliant: Yes, Maximum Temperature: 140F, #20 Mesh Size, Pressure - Maximum: 15 - 75 psi, Recommended Valve Application: Water, Specifications - ANSI: ANSI B1.20.1, 61, Specifications - ASSE Standards: ASSE 1003, Specifications - ASTM: ASTM B-584, Specifications - IAPMO Listed: Yes, Specifications - NSF: NSF 372, 31, 61-9 or 61/9 or 61.9, Specifications - NSF Certified: Yes, EPDM Valve Seat, Valve Size: 1-1/4 in., Brass Valve Stem
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Category Bronze Tones
Colour/Finish Name Cast Bronze
End Connection Single Union FNPT
End Connection 1 Single Union FNPT
End Connection 2 Single Union FNPT
Height 7-3/4 in.
Installation Type Horizontal Mount;Vertical Mount
Lead Law Compliant Yes
Length 6-1/5 in.
Material Cast Bronze
Material Type Polymer
Maximum Temperature 140F
Minimum Temperature 33
Pressure - Maximum 75 psi
Recommended Valve Application Water
Size 1-1/4 in.
Specifications - ANSI ANSI B1.20.1;ANSI 61
Specifications - ASSE Standards ASSE 1003
Specifications - ASTM ASTM B-584
Specifications - CSA Certified Yes
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 372;NSF 31;NSF 61-9
Specifications - NSF Certified Yes
Style Name Model NC3XL
Valve Body Style inline
Valve Disc Material EPDM
Valve Seat Material EPDM
Valve Size 1-1/4 in.
Valve Type Pressure Reducing Valve
Weight 4.50 lb
Width 3 in.
Application Plumbing
Origin Global
Product Type Pressure Reducing & ACV Valves
Valve Body Material Cast Bronze
Mesh Size 20
