WILZW1070XLPEXK

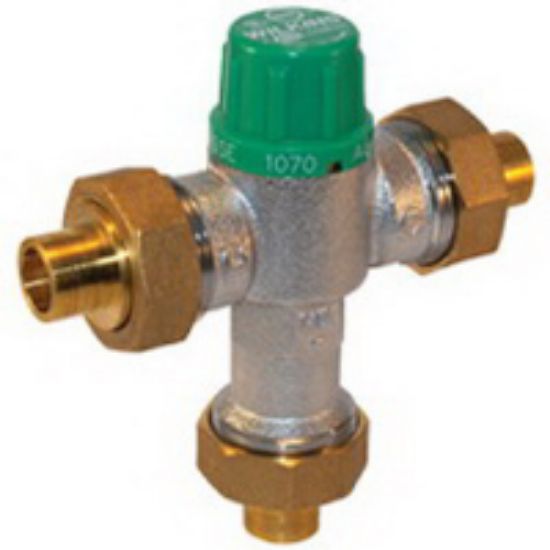

Aqua-Gard ZW1070XL Lead-Free Cast Bronze Thermostatic Mixing Valve, 1/2 in., PEX Barb, 145 psi Inlet

Manufacturer: Zurn

$0.00

Qty:

Aqua-Gard Thermostatic Mixing Valve, Model: ZW1070XL, 5-9/16 in. Length, 5-9/16 in. Height, Cast Bronze, End Connection 1: PEX Barb, End Connection 2: PEX Barb, 0.35 - 10 gpm at 45 psi Flow Rate, Lead Law Compliant: Yes, 120 - 195F Hot Supply, 40 - 75F Cold Supply, 95 - 115F Outlet Maximum - Temperature, Pressure - Maximum: 145 psi Inlet, ASSE 1070 Specifications - ASSE Standards, Specifications - NSF: NSF 9 and 61, Specifications - NSF Certified: Yes, Valve Size: 1/2 in., Specifications - ASTM: ASTM B-584, ASTM B-456, ASTM B-927

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-9/16 in.
Height	5-9/16 po
Material	Cast Bronze
End Connection 1	PEX Barb
End Connection 2	PEX Barb
Flow Rate	0.35 - 10 gpm at 45 psi
Lead Law Compliant	Yes
Maximum Temperature	120 - 195F Hot Supply, 40 - 75F Cold Supply, 95 - 115F Outlet
Pressure - Maximum	145 psi Inlet
Specifications - ASSE Standards	ASSE 1070
Specifications - NSF	NSF 9 and 61
Specifications - NSF Certified	Yes
Valve Size	1/2 in.
