Picture of PCT324LF 41/2 0-160 CONTR GAUGE 1/4 BTM

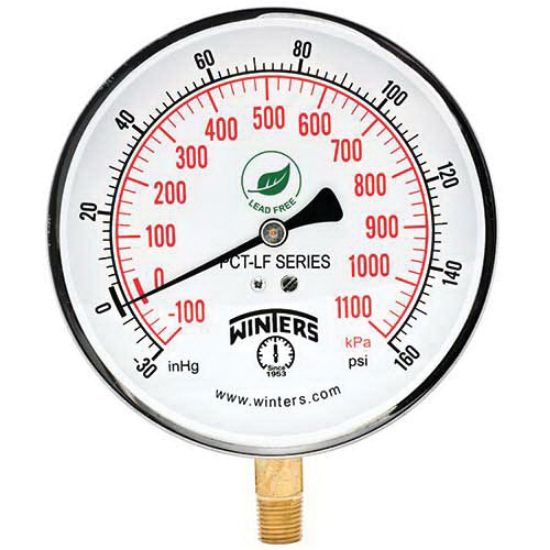

PCT324LF 41/2 0-160 CONTR GAUGE 1/4 BTM

Winters PCT324LF PCT Series 1/4 in. x 4-1/2 in. NPT Bottom Mount Stainless Steel Case Contractor Pressure Gauge, 160 psi/kPa
Manufacturer: Winters
$0.00
Contractor Pressure Gauge, PCT Series, 6.06 in. Length, 1.18 in. Width, Material: Stainless Steel Case, End Connection 1: Bottom Mount NPT, Fitting Size 1: 1/4 in., Lead Law Compliant: Yes, Pressure - High: 160 psi/kPa, Pressure - Low: 0 psi/kPa, Specifications - ASME: ASME B40.100 Grade 1A, Temperature Range: -40 to 200F, Plus or Minus 1% Accuracy, Enclosure Rating: IP52, Dial Size: 4-1/2 in.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection NPT
End Connection 1 NPT
End Connection 2 IPS
Fitting Size 1 1/4 in.
Fitting Sizes 1/4 in.
Lead Law Compliant Yes
Length 6-3/5 in.
Material Stainless Steel;Acrylic;Brass;Phosphor Bronze
Pressure - High 160 psi/kPa
Pressure - Low 0 psi/kPa
Size 1/4 in.
Specifications - ASME ASME B40.100;ASME Grade 1A
Temperature Range -40 to 150 Deg F
Width 1-9/50 in.
Product Type Pressure Gauges
Diameter 4-1/2 in.
Material Type 304 SS
Maximum Temperature 150
Minimum Temperature -40
Application Commercial;Air;Water and Steam Services
Installation Type Bottom Mount
Specifications - ANSI ANSI Grade 1A
Style Name PCT Series
